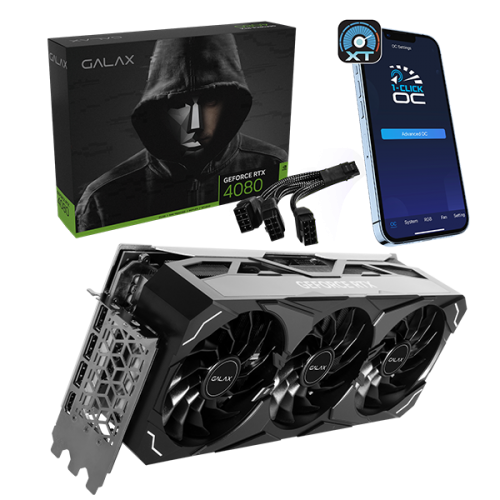

GALAX GeForce RTX™ 4080 16GB ST 1-Click OC

16GB GDDR6X 256-bit DP*3/HDMI 2.1/DLSS 3

Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace architecture, and full ray tracing, GALAX GeForce RTX 4080 16GB ST features the brand-new 19-phrase power design, 9728 CUDA cores and the boost clock of 2505MHz(1-Click OC Clock 2520MHz), offering the next-gen performance with the latest NVIDIA Ada Lovelace architecture.With upgraded exclusive EXTREME thermal cooling system, the GPU delivers excellent cooling efficiency alongside exceptional performance. A PCIe 16-pin to 3x PCIe 8-pin adaptor is also included.


Product Code: 48NZM6MD6LTS


EAN: 4895147150376


Product Driver: Download


High-Res Photo: Download









1-Click OC allows you to boost your graphics cards with just one click! Download Xtreme Tuner Plus now!

PC: Download Android: Download iOS: Download


  • NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
  • 4th Generation Tensor Cores: Up to 2X AI performance
  • 3rd Generation RT Cores: Up to 2X ray tracing performance
  • Microsoft DirectX® 12 Ultimate
  • GDDR6X Graphics Memory
  • NVIDIA DLSS
  • NVIDIA® GeForce Experience™
  • NVIDIA G-SYNC®
  • NVIDIA GPU Boost™
  • Game Ready Drivers
  • Vulkan RT API, OpenGL 4.6
  • DisplayPort 1.4a, HDMI 2.1
  • HDCP 2.3
  • VR Ready
  • To 1-Click OC, overclock, control ARGB and monitor GPU info of your graphics cards in-App, please make sure your mobile device and PC are connected with the same WiFi network.
  • All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor / importer for confirmation.
GPU Engine Specs:
  • CUDA Cores: 9728
  • Boost Clock: 2505MHz
  • 1-Click OC Clock: 2520MHz (by installing Xtreme Tuner Plus Software and using 1-Click OC)
Memory Specs:
  • Memory Speed: 22.4 Gbps
  • Standard Memory Config: 16GB
  • Memory Interface Width 256-bit GDDR6X
  • Memory Bandwidth: 716.8 GB/sec
Feature Support:
  • PCI-E 4.0
  • Windows 10/11 64-bit
Fan Feature:
  • 3 * 102mm
  • WING 2.0 with Fan stop @ Idle (All Fan)
Display Support:
  • DisplayPort 1.4a x 3, HDMI 2.1 x 1
Dimensions:
  • Dimensions(with Bracket): 352 * 153 * 66mm
  • Dimensions(without Bracket): 336 * 138 * 66mm
In Box Accessories:
  • 1-Click Sync Pro Cable * 2
  • PCIe 16-pin to 3x PCIe 8-pin adaptor
  1. PCI Express-compliant motherboard with one x16 graphics slot
  2. System Space for 3.5-slot card required
  3. PSU with native 450W PCIe Gen5 16-pin power connector, or minimum 3x PCIe 8-pin power connectors (use with included adapter)
  4. Minimum 750W or greater system power supply
    (Minimum is based on a PC configured with a Ryzen 9 5900X processor. Power requirements can be different depending on system configuration.)
  5. 32GB system memory recommended)
  6. Microsoft Windows 10/11 64-bit (Build 2004 or later recommended)
