GALAX GeForce RTX™ 4080 16GB ST 1-Click OC

GALAX GeForce RTX™ 4080 16GB ST 1-Click OC

GALAX GeForce RTX™ 4080 16GB ST 1-Click OC

16GB GDDR6X 256-bit DP*3/HDMI 2.1/DLSS 3

Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace architecture, and full ray tracing, GALAX GeForce RTX 4080 16GB ST features the brand-new 19-phrase power design, 9728 CUDA cores and the boost clock of 2505MHz(1-Click OC Clock 2520MHz), offering the next-gen performance with the latest NVIDIA Ada Lovelace architecture.With upgraded exclusive EXTREME thermal cooling system, the GPU delivers excellent cooling efficiency alongside exceptional performance.

To deliver better support for the GPU is also bundled with a GPU support stick. A PCIe 16-pin to 3x PCIe 8-pin adaptor is also included.


Product Code: 48NZM6MD6LTS


EAN: 4895147150376


Product Driver: Download


High-Res Photo: Download













1-Click OC allows you to boost your graphics cards with just one click! Download Xtreme Tuner Plus now!

PC: Download Android: Download iOS: Download
1-Clip Booster 2.0 is an additional fan that comes with selected 40 series GPUs. It is optional for users to install at their discretion.

Quick Installation Guide
  • NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
  • 4th Generation Tensor Cores: Up to 2X AI performance
  • 3rd Generation RT Cores: Up to 2X ray tracing performance
  • Microsoft DirectX® 12 Ultimate
  • GDDR6X Graphics Memory
  • NVIDIA DLSS
  • NVIDIA® GeForce Experience™
  • NVIDIA G-SYNC®
  • NVIDIA GPU Boost™
  • Game Ready Drivers
  • Vulkan RT API, OpenGL 4.6
  • DisplayPort 1.4a, HDMI 2.1
  • HDCP 2.3
  • VR Ready
  • All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor / importer for confirmation.
GPU Engine Specs:
  • CUDA Cores: 9728
  • Boost Clock: 2505MHz
  • 1-Click OC Clock: 2520MHz (by installing Xtreme Tuner Plus Software and using 1-Click OC)
Memory Specs:
  • Memory Speed: 22.4 Gbps
  • Standard Memory Config: 16GB
  • Memory Interface Width 256-bit GDDR6X
  • Memory Bandwidth: 716.8 GB/sec
Feature Support:
  • PCI-E 4.0
  • Windows 10/11 64-bit
Fan Feature:
  • 3 * 102mm
  • WING 2.0 with Fan stop @ Idle (All Fan)
Display Support:
  • DisplayPort 1.4a x 3, HDMI 2.1 x 1
Dimensions:
  • Dimensions(with Bracket): 352 * 153 * 66mm
  • Dimensions(without Bracket): 336 * 138 * 66mm

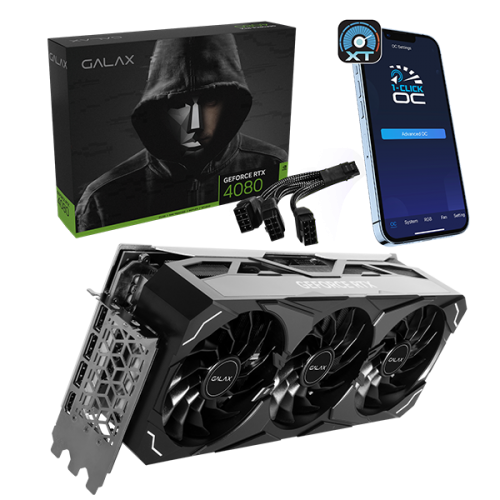

In Box Accessories:
  • 1-Click Sync Pro Cable * 2
  • GPU Support Stick
  • PCIe 16-pin to 3x PCIe 8-pin adaptor
  • 1-Clip Booster 2.0 Fan
  1. PCI Express-compliant motherboard with one x16 graphics slot
  2. System Space for 3.5-slot card required
  3. PSU with native 450W PCIe Gen5 16-pin power connector, or minimum 3x PCIe 8-pin power connectors (use with included adapter)
  4. Minimum 750W or greater system power supply
    (Minimum is based on a PC configured with a Ryzen 9 5900X processor. Power requirements can be different depending on system configuration.)
  5. 32GB system memory recommended)
  6. Microsoft Windows 10/11 64-bit (Build 2004 or later recommended)
  7. 1-Clip Booster 2.0 Fan is 22mm x 130mm in height and length and is 193mm away measured from the graphics card bracket, please check your motherboard for compatibility before installation
