- Completely redesigned PCB layout from the ground up, optimised for GM204
- 10 layer manufacturing process in HOF signature pure white colour
- Extended PCB width for optimised layout and cleaner signal

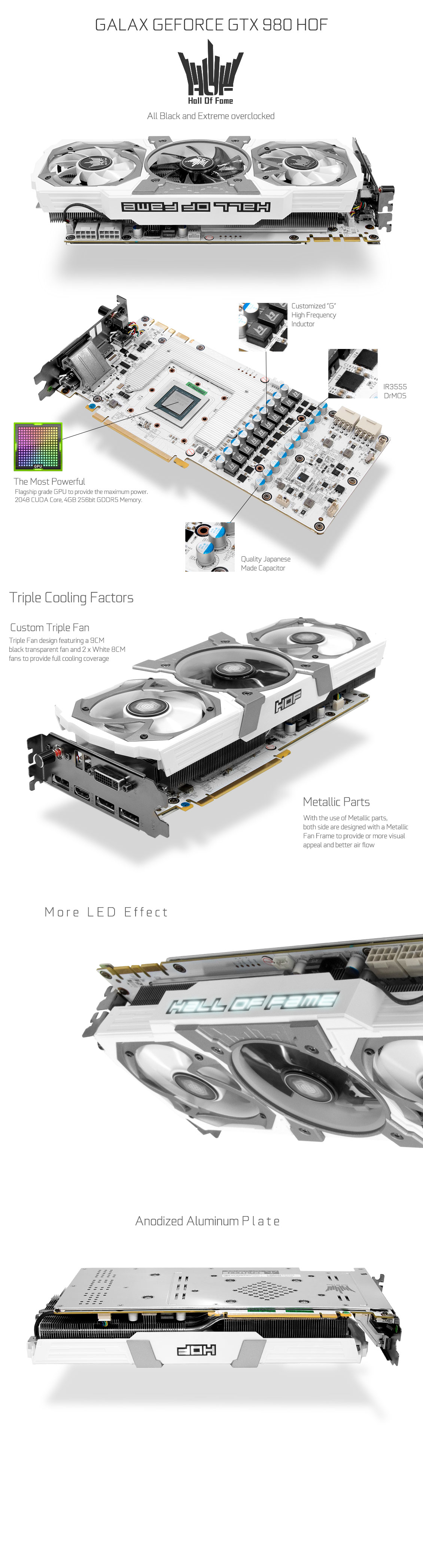

- New completely redesigned “Triple Force” cooler
- 2x 80mm fan + 1x 90mm fan
- 4x 8mm heat pipes + 3x 6mm heat pipes (total 7 nickel-plated heat pipes)
- Copper base
- Integrated MOSFET heatsink
- Customisable top HOF LED (control blanking frequency, brightness with GFE)
- Plastic cover with premium die-cast aluminum accents
- Anodised Aluminum Backplate protects components and reinforces PCB
- Next generation IR3595 Digital PWM controller provides 2X switching frequency vs. previous generation
- 8 phase GPU + 2 phase memory power
- IR3555 with next gen DrMOS and 60A output
- Aerospace-grade ""GALAX Extreme Power Inductors"" provide Ultra Long Life, Long Endurance and Low Noise than normal power inductors
- Hyper Boost technology acts like a hardware turbocharger, increasing fan speed and maximum power delivered to the GPU with the push of a button
- Voltage tool (developed by enthusiasts) allows voltage beyond stock limits
- Hardware dual BIOS simplifies the tweaking process by enabling risk-free firmware updates and customisation
- NVIDIA® GeForce® GTX® VR Ready
- NVIDIA® Dynamic Super Resolution (DSR)
- NVIDIA® Global Illumination (VXGI)
- NVIDIA® GameWorks Technology
- NVIDIA® GameStream Technology
- NVIDIA® TXAA Technology
- NVIDIA GPU Boost 2.0
- NVIDIA PhysX® Technology
- NVIDIA FXAA Technology
- NVIDIA Adaptive Vertical Sync
- NVIDIA Surround
- Microsoft DirectX 12
- NVIDIA® 3D Vision® Ready
- NVIDIA SLI® Ready Technology
- NVIDIA CUDA® technology
- PCI Express 3.0 support
- OpenGL 4.4 support
- OpenCL support
- NVIDIA SHIELD Ready
- NVIDIA G-Sync Ready
- All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor / importer for confirmation.
- GPU Engine Specs:
- CUDA Cores 2048
- Base Clock (MHz) 1304
- Boost Clock (MHz) 1418
- Memory Specs:
- Memory Speed 3505 (7010 ) Mhz
- Standard Memory Config 4096MB
- Memory Interface Width 256-bit GDDR5
- Memory Bandwidth (GB/sec) 224
- Feature Support:
- OpenGL 4.4
- Bus Support PCI-E 3.0
- Certified for Windows 8 Yes
- Supported Technologies DirectX 12
- Virtual Reality Ready Yes
- SLI Options 4-WAY
- Display Support:
- Multi Monitor Four displays
- Maximum Digital Resolution 4096x2160
- Maximum VGA Resolution 2048x1536
- HDCP Yes
- HDMI Yes
- Standard Display Connectors Dual Link DVI x1, HDMI x1, DisplayPort 1.2 x3
- Audio Input for HDMI Internal
- Power Specs:
- Maximum Graphics Card Power (W) 165W
- Minimum System Power Requirement (W) 500W
- Supplementary Power Connectors Two 8-pin
- Model:
- Product Code 98NQH6DND2UZ / 98NQH6DND2TX
- EAN Code 4895147118260
- PCI Express-compliant motherboard with one dual-width x 16 graphics slot
- 2 x 8-pin PCI Express supplementary power connectors
- Minimum 500W or greater system power supply (with a minimum 12V current rating of 42A)
- 300MB of available hard-disk space
- 2GB system memory (4GB or higher recommended)
- Microsoft Windows 10, Windows 8 & 8.1, Windows 7, Windows Vista (32 or 64-bit)
- CD-ROM/DVD-ROM drive or Internet connection
- Windows XP no longer supported
- Dimensions:
- Dimensions(with Bracket): 315*144.1*51 mm
- Dimensions(without Bracket): 298*129*51 mm
