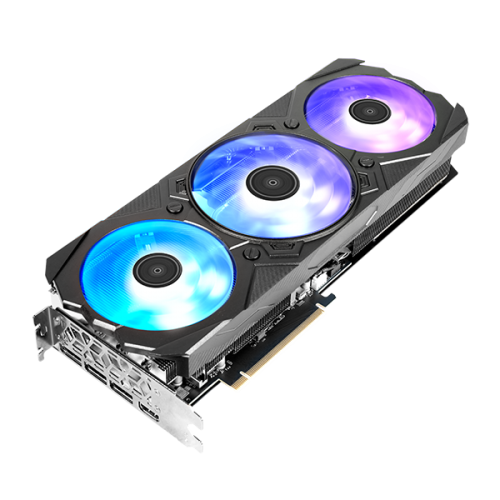

GALAX GeForce RTX™ 4070 EX Gamer D6

12GB GDDR6 192-bit DP*3/HDMI 2.1/DLSS 3

Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace architecture, and full ray tracing, the triple fans GeForce RTX 4070 Extreme Gamer features 5,888 CUDA cores and the hyper speed 20Gbps 12GB 192-bit GDDR6 memory, as well as the exclusive 1-Click OC clock of 2550MHz through its dedicated software Xtreme Tuner Plus. As it is equipped with a single PCI-E 8-pin power connector and a super lightweight 2.5 slot cooler, the newest GPU offers a seamless upgrade experience to the users.


Product Code: 47NOL7MD7JEX


EAN: 4895147157580


Product Driver: Download


High-Res Photo: Download


User Manual: Download













1-Click OC allows you to boost your graphics cards with just one click! Download Xtreme Tuner Plus now!

PC: Download Android: Download iOS: Download


Customize your ARGB color with Xtreme Tuner Plus, or synchronize with your system. Connect the graphics card to 5V ARGB header on your motherboard or other ARGB control system, by using the included cable.

Quick User Guide


  • NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
  • 4th Generation Tensor Cores: Up to 2X AI performance
  • 3rd Generation RT Cores: Up to 2X ray tracing performance
  • Microsoft DirectX® 12 Ultimate
  • GDDR6 Graphics Memory
  • NVIDIA DLSS
  • NVIDIA® GeForce Experience™
  • NVIDIA G-SYNC®
  • NVIDIA GPU Boost™
  • Game Ready Drivers
  • Vulkan RT API, OpenGL 4.6
  • DisplayPort 1.4a, HDMI 2.1
  • HDCP 2.3
  • VR Ready
  • To 1-Click OC, overclock, control ARGB and monitor GPU info of your graphics cards in-App, please make sure your mobile device and PC are connected with the same WiFi network.
  • All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor / importer for confirmation.
GPU Engine Specs:
  • CUDA Cores: 5888
  • Boost Clock: 2535MHz
  • 1-Click OC Clock: 2550MHz (by installing Xtreme Tuner Plus Software and using 1-Click OC)
Memory Specs:
  • Memory Speed: 20 Gbps
  • Standard Memory Config: 12GB
  • Memory Interface Width 192-bit GDDR6
  • Memory Bandwidth: 480 GB/sec
Feature Support:
  • PCI-E 4.0
  • Windows 10/11 64-bit
Fan Feature:
  • 2 * 92mm, 1 * 102mm
  • WINGS with Fan stop @ Idle (All Fans)
Display Support:
  • DisplayPort 1.4a x 3, HDMI 2.1a x 1
Dimensions:
  • Dimensions(with Bracket): 336 * 146 * 48mm
  • Dimensions(without Bracket): 323 * 131 * 48mm
In Box Accessories:
  • 1-Click Sync Pro cable
  1. PCI Express-compliant motherboard with one x16 graphics slot
  2. System Space for 2.5-slot card required
  3. PSU with 1x PCIe 8-pin power connectors
  4. Minimum 600W or greater system power supply
    (Minimum is based on a PC configured with a Ryzen 9 5900X processor. Power requirements can be different depending on system configuration.)
  5. 32GB system memory recommended)
  6. Microsoft Windows 10/11 64-bit (Build 2004 or later recommended)
