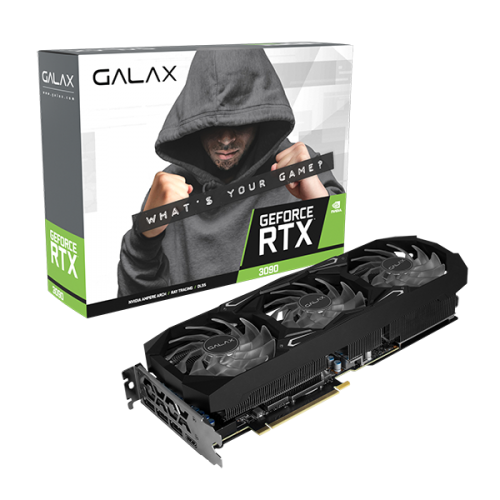

GALAX GeForce RTX™ 3090 SG (1-Click OC Feature)

24GB GDDR6X 384-bit DP*3/HDMI/

The all-new GALAX Serious Gaming Edition has equipped with 1-Clip Booster, which can be installed at the back plate and it is the precision and quality that win. When the fan is at the back the PCB is in fact much shorter than the cooler and the key is to allow air to flow as easy as they could, therefore GALAX built larger holes that allows air to flow through to fulfil the first requirement.


Apart from that, the advantage of adding a fan on the back plate, the 1-Clip booster fan design sucks the air out instead of blowing the air in, creating a technically-correct push-pull cooling effects. When this additional fan is used, it can achieve better performance as if a GPU running with a normal back plate.


Product Code: 39NSM5MD1GNA


EAN: 4895147141190


Product Driver: Download


High-Res Photo: Download

















1-Click OC allows you to boost your graphics cards with just one click! Download Xtreme Tuner now!

PC: Download
Android: Download
iOS: Download


Customize your RGB color with Xtreme Tuner, or synchronize with the rest of your system, by connecting the graphics card to +12V RGB header of your motherboard or other RGB control system, using the included cable.Quick User Guide
GALAX has the brand-new 1-Clip Booster on the new SG series graphics cards. It is an additional fan that would be bundled with the GPU and it is optional for users to install at their discretion. Quick Installation Guide
  • 2nd Gen Ray Tracing Cores
  • 3rd Gen Tensor Cores
  • Microsoft® DirectX® Ultimate
  • GDDR6X Graphics Memory
  • NVIDIA DLSS
  • NVIDIA® GeForce Experience™
  • NVIDIA G-SYNC®
  • NVIDIA GPU Boost™
  • Game Ready Drivers
  • Vulkan RT API, OpenGL 4.6
  • DisplayPort 1.4a, HDMI 2.1
  • HDCP 2.3
  • VR Ready
  • NVIDIA® NVLink® (SLI Ready)
  • All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor / importer for confirmation.
GPU Engine Specs:
  • CUDA Cores 10496
  • Boost Clock (MHz) 1695
  • 1-Click OC Clock (MHz) 1710 (by installing Xtreme Tuner Plus Software and using 1-Click OC)
Memory Specs:
  • Memory Speed 19.5 Gbps
  • Standard Memory Config 24GB
  • Memory Interface Width 384-bit GDDR6X
  • Memory Bandwidth (GB/sec) 936
Feature Support:
  • PCI-E 4.0
  • Windows 10 64-bit, Linux 64-bit
Fan Feature:
  • 3*92mm
  • Fan stop @ Idle (All Fan)
Display Support:
  • DisplayPort 1.4a x 3, HDMI 2.1
Dimensions:
  • Dimensions(with Bracket): 329*130*61mm
  • Dimensions(without Bracket): 317*113*61mm

Resizable BAR BIOS update for GeForce RTX 30 series: Download

  1. PCI Express-compliant motherboard with one dual-width x 16 graphics slot
  2. System Space for 3-slot card required
  3. 2 x PCIe 8-pin supplementary power connectors
  4. Minimum 750W or greater system power supply
  5. 32GB system memory recommended)
  6. Microsoft Windows 10 64-bit (Build 2004 or later recommended) or Linux 64-bit
  7. Clip on fan is 22mm X 98mm in height and length and is 192mm away measured from the graphics card bracket, please check your motherboard for compatibility before installation
