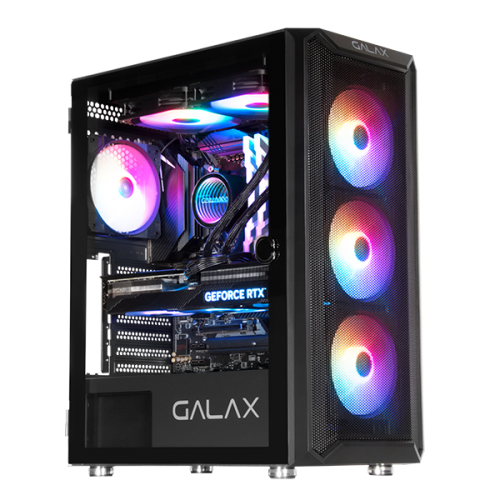

GALAX PC Case (REV-07)


Product Code: CGG7AGBA4B0

EAN: 4895147152509

High Res Image: Download

User Manual: Download

  • All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor / importer for confirmation.
  Form Factor (Midi, Micro, Mini ITX, Full) ATX, M-ATX, ITX

SPCC + Tempered Glass

  PSU Form Factor ATX  ≤160mm ≤140*150*86mm
  M/B Form Factor ATX, M-ATX, ITX
  Front Panel ABS, Mesh cover
  Top Panel Metal cover
Side Panel Left Tempered Glass
Right Metal cover
Internal Drive Bay(s) 3.5" (HDD) *2
2.5" (SSD) *3
I/O Buttons  *2
USB1.1 Port(s) *0
USB2.0 Port(s) *2
USB3.0 Port(s) *1
HD Audio Support *1
Cooling Fan Support Front 3x120mm (Fan optional)
Top 2x120mm,2x140mm (Fan optional)
Rear 1x120mm (Fan optional)
Side 0
Water Cooling Support
(Radiator Size)
Front 240mm/280mm/360mm
Top 240mm/280mm
Rear 120mm
Dimensions Chassis (L)350*(W)205*(H)470mm
Full Case (inc Fascia) (L)400.6*(W)205*(H)481.5mm
Carton (L)532*(W)258*(H)465mm
Net Weight (Kg) 4.3KG
Gross Weight (Kg) 4.95KG
  VGA Card Length up to 330mm
  CPU Cooler Height 160mm
  Cable Management Depth 18mm
  RGB Fan 4 included
