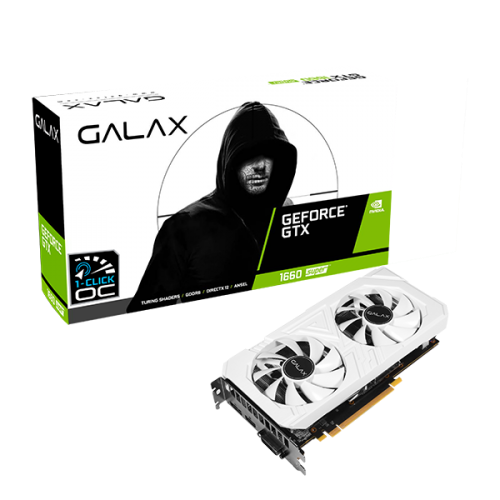

GALAX GeForce® GTX 1660 Super EX White (1-Click OC)

6GB GDDR6 192-bit DP/HDMI/DVI-D

With 90 mm fans and fans stop to assure the temperature is maintained at a reasonable level, with the vivid RGB lighting, providing you some colors in the case. To prevent the stress on PCB, the 1660 Super EX series is furnished with back plates that befit for both colors.



Product Code 60SRL7DS04WS


UPC Code 4895147137742




Product Driver:
Download





High-Res Photo:
Download












1-Click OC allows you to boost your graphics cards with just one click! Download
  • NVIDIA® Turing™
  • NVIDIA® GeForce Experience
  • NVIDIA® Ansel
  • NVIDIA® G-SYNC™ Compatible
  • NVIDIA® Highlights
  • Game Ready Drivers
  • Microsoft® DirectX® 12 API, Vulkan API, OpenGL 4.6
  • DisplayPort 1.4, HDMI 2.0b, DVI-D
  • HDCP 2.2
  • NVIDIA® GPU Boost™
  • VR Ready
  • All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor / importer for confirmation.
  • GPU Engine Specs:
  • CUDA Cores 1408
  • Boost Clock (MHz) 1830
  • 1-Click OC Clock (MHz) 1845 (by installing Xtreme Tuner Plus Software and using 1-Click OC)
  • Memory Specs:
  • Memory Speed 14 Gbps
  • Memory Interface Width 192-bit GDDR6
  • Memory Bandwidth (GB/sec) 336
  • Display Support:
  • Multi Monitor 3 Displays
  • Standard Display Connectors DP 1.4, HDMI 2.0b, DVI-D
  • Standard Graphics Card Dimensions:
  • Dimensions(with Bracket) 245*133*41.5 mm
  • Dimensions(without Bracket) 233*119*40 mm
  • Fan stop @ Idle (All Fan)
  • Power Specs:
  • Maximum Graphics Card Power (W) 125W
  • Minimum System Power Requirement (W) 450W
  • Supplementary Power Connectors 8-pin
  1. PCI Express-compliant motherboard with one dual-width x 16 graphics slot
  2. 1x 8-pin PCI Express supplementary power connectors
  3. Minimum 450W or greater system power supply
  4. 350MB of available hard-disk space
  5. 4GB system memory (6GB or higher recommended)
  6. Microsoft Windows 10, Windows 8 & 8.1, Windows 7 64-bit
  7. CD-ROM/DVD-ROM drive or Internet connection
  8. Windows XP no longer supported
