Full Modular / 850W / ATX 3.0 / Cybenetics Gold

Endorsed with the prestigious Gold Efficiency Certifications from Cybenetics, the fully modular GLX850 power supply unit is compatible with ATX 3.0 standards, offering future-proof compatibility with GALAX's latest GeForce RTX 40 series graphics cards and high-performance processors. Featuring high-quality 105°C-Rated Capacitors and robust protection measures like OCP, OVP, UVP, OTP, OPP, and SCP, both the GLX and GL units assure unwavering performance and unparalleled stability for power-hungry PCs.

Product Code: PGO85GPTNAFB0

EAN: 4895147155654

High Res Image: Download

All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor / importer for confirmation.
CYBENETICS efficiency levels (ETA)   GOLD
Form Factor   ATX 3.0
Connector spec

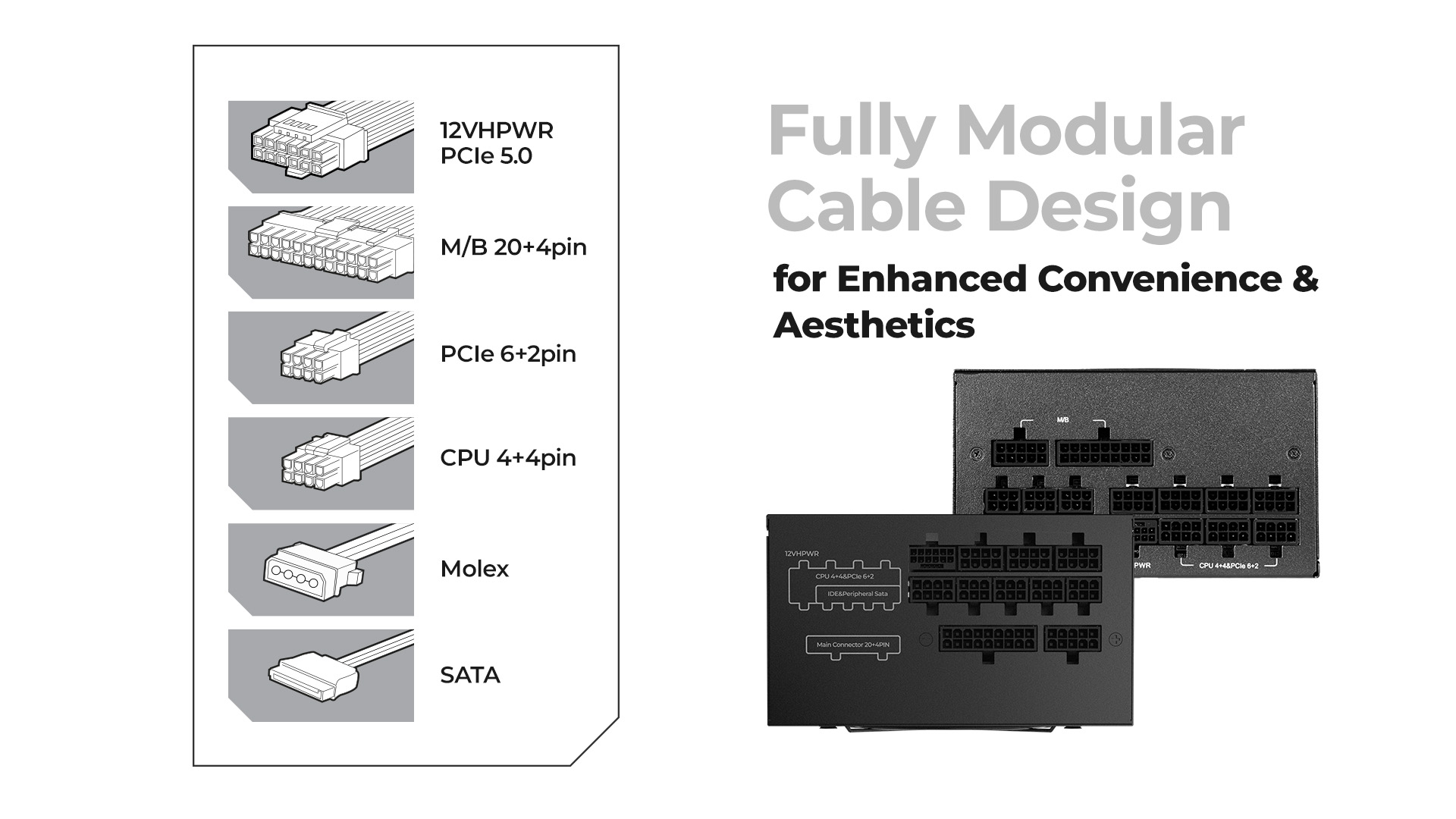

Cable: Full Modular
  20+4 pin MB power x 1
  4+4 pin CPU power x 2

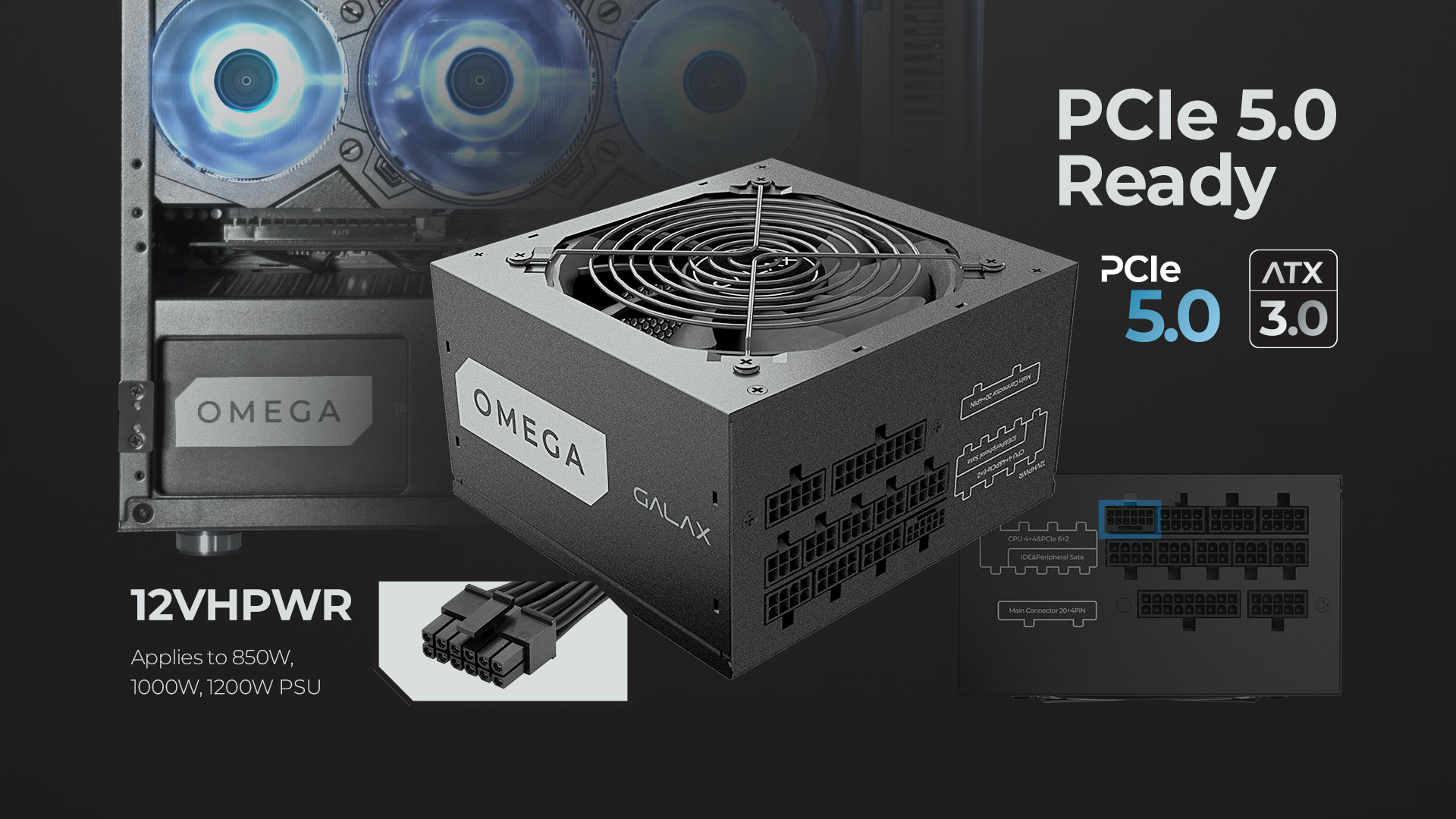

  12+4 pin 12VHPWR PCIe 5.0 x1
  (6+2)(6+2) pin PCI-E power x 2
  SATA power x 8
  Molex x 3
Cable Length   24pin exposed 600mm, & CPU 4+4pin exposed 700mm, others exposed 400mm+150mm
Power and Electrical Specs   AC Input: 100-240V
Total Output: 850W
Protection: OVP, SCP, OPP, UVP, OTP, OCP
  DC/DC conversion

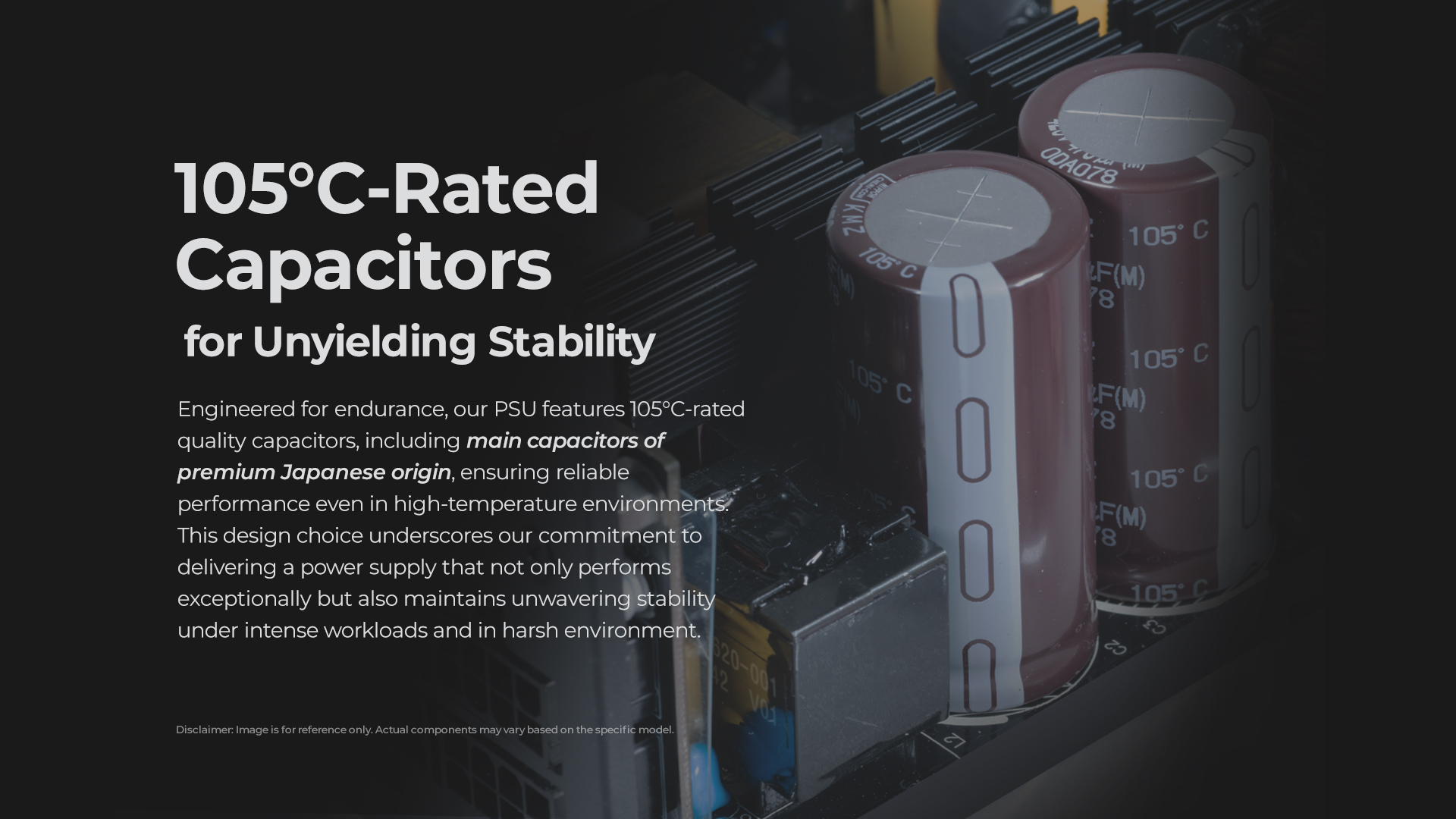

Capacitors   105°C-Rated Capacitors
Fan Specs Fan size: 120mm (Fluid Dynamic Bearing)
Max. fan speed < 2000 RPM
Dimensions   140*150*86mm
Weight Net weight: TBC
Gross weight: TBC
