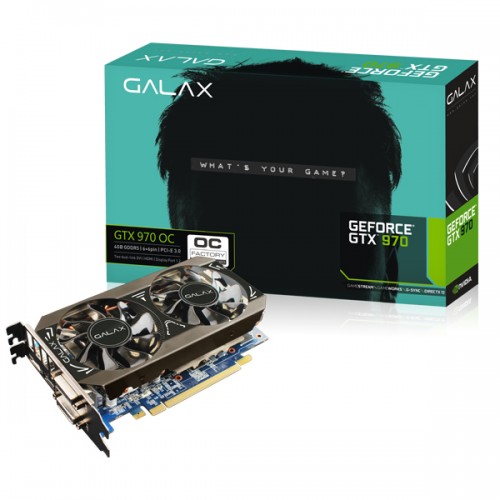

GALAX GEFORCE GTX 970 GAMER OC

4GB DDR5 256-bit DVI-D/DVI-I/HDMI/DP

The GALAX GeForce GTX 970 OC is a high performance slim graphics card, designed for the small form factor (ITX) cases, built with a advanced dual fan cooler and 3 copper heat pipes to keep both temps and noise to a minimum, powered by the next generation NVIDIA® Maxwell™ architecture.




High Resolution Images:
Download



Product Driver:
Download

  • 1266 MHz factory overclocked
  • Black PCB
  • Designed for small form factor cases
  • Advanced Dual fan cooler with 3 copper heat pipes to keep both temps and noise to a minimum
  • Quad mixed-gauge heat pipes ensure maximum heat dissipation
  • Copper base with solid aluminum cover
  • NVIDIA® GeForce® GTX® VR Ready
  • NVIDIA® Dynamic Super Resolution (DSR)
  • NVIDIA® Global Illumination (VXGI)
  • NVIDIA® GameWorks Technology
  • NVIDIA® GameStream Technology
  • NVIDIA® TXAA Technology
  • NVIDIA GPU Boost 2.0
  • NVIDIA PhysX® Technology
  • NVIDIA FXAA Technology
  • NVIDIA Adaptive Vertical Sync
  • NVIDIA Surround
  • Microsoft DirectX 12
  • NVIDIA® 3D Vision® Ready
  • NVIDIA SLI® Ready Technology
  • NVIDIA CUDA® technology
  • PCI Express 3.0 support
  • OpenGL 4.4 support
  • OpenCL support
  • NVIDIA SHIELD Ready
  • NVIDIA G-Sync Ready
  • 所有圖片、規格及內容只供參考,並隨時作出變更而不另行通知。實際產品在不同國家會有所不同,請向所在地的經銷商或進口商進行確認。
  • GPU Engine Specs:
  • CUDA Cores 1664
  • Base Clock (MHz) 1126
  • Boost Clock (MHz) 1266
  • Memory Specs:
  • Memory Speed 3505 (7010 ) MHz
  • Standard Memory Config 4096MB
  • Memory Interface Width 256-bit GDDR5
  • Memory Bandwidth (GB/sec) 224
  • Feature Support:
  • OpenGL 4.4
  • Bus Support PCI-E 3.0
  • Certified for Windows 8 Yes
  • Supported Technologies DirectX 12
  • Virtual Reality Ready Yes
  • SLI Options 3-WAY
  • Display Support:
  • Multi Monitor
  • Maximum Digital Resolution 4096x2160
  • Maximum VGA Resolution 2048x1536
  • HDCP Yes
  • HDMI Yes
  • Standard Display Connectors Dual DVI-I/DVI-D, HDMI x1, DisplayPort 1.2 x1
  • Audio Input for HDMI Internal
  • Power Specs:
  • Maximum Graphics Card Power (W) 145W
  • Minimum System Power Requirement (W) 500W
  • Supplementary Power Connectors Two 6-pin
  • Model:
  • Product Code 97NPH6DT8RVZ
  • UPC Code 4895147118222
  1. PCI Express-compliant motherboard with one dual-width x 16 graphics slot
  2. 2 x 6-pin PCI Express supplementary power connectors
  3. Minimum 500W or greater system power supply (with a minimum 12V current rating of 42A)
  4. 300MB of available hard-disk space
  5. 2GB system memory (4GB or higher recommended)
  6. Microsoft Windows 10, Windows 8 & 8.1, Windows 7, Windows Vista (32 or 64-bit)
  7. CD-ROM/DVD-ROM drive or Internet connection
  8. Windows XP no longer supported
  9. Dimensions:
  10. Dimensions(with Bracket): 193*124.3*41.5 mm
  11. Dimensions(without Bracket): 179*111.2*38.6 mm
