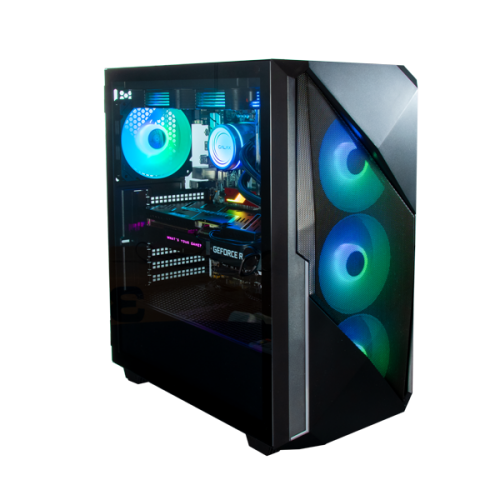

GALAX PC Case (REV-01)


Product Code: CG01AGBA4A0

EAN: 4895147144016

High Res Image: Download

User Manual: Download

  • All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor / importer for confirmation.
  Form Factor (Midi, Micro, Mini ITX, Full)   Midi
  Chassis   SPCC: 0.45mm
  PSU Form Factor   Bottom/ATX
  M/B Form Factor   ATX、M-ATX
  Front Panel   ABS, Mesh
  Top Panel   Metal cover
Side Panel Left   Tempered Glass
Right   Metal cover
External Drive Bay(s) 5.25" (ODD)   *0
3.5"   *0
Internal Drive Bay(s) 3.5" (HDD)   *2
2.5" (SSD)   *2
1*3.5HDD+3*2.5SSD  or  2*3.5HDD+2*2.5SSD
I/O Buttons   *4
USB1.1 Port(s)   *0
USB2.0 Port(s)   *1
USB3.0 Port(s)   *1
USB3.1 Port(s)   *0
HD Audio Support   *1
Card Reader (Support)   *0
P-Lock   *0
RGB Controller   *1  Rainbow+PWM V2.0
Controller max. fans   *5
RGB Controller max. LED strips   *2
Remote (IR or RF)   *0
Cooling Fan Support Front   3x120mm,2x140mm(Fan optional)
Top   2x120mm,2x140mm(Fan optional)
Rear   1x120mm (Fan optional)
Left Side   0
PSU Cover   2x120mm (Fan optional)
Water Cooling Support
(Radiator Size)
Front   120mm, 140mm, 240mm, 280mm, 360mm
Top   120mm, 140mm, 240mm
Rear   120mm*1
  Dust Cover   Bottom and top cover with dust filter
  Slots   *7
Dimensions Chassis mm (L)360*(W)210*(H)440
Full Case (inc Fascia) mm (L)424*(W)215*(H)460
Carton mm (L)506*(W)266*(H)465
Net Weight (Kg) kg 4.9
Gross Weight (Kg) kg 5.8
  VGA Card Length mm up to 340
  CPU Cooler Height mm 170
  Cable Management Depth mm 22
