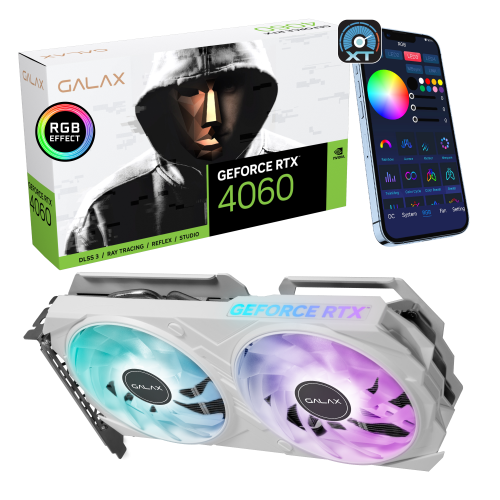

GALAX GeForce RTX™ 4060 EX White 1-Click OC

8GB GDDR6 128-bit/DP*3/HDMI 2.1/DLSS 3

Featuring 3072 CUDA cores and a 17Gbps 8GB 128-bit GDDR6 memory, the dual fan GeForce RTX 4060 EX is equipped with the exclusive WINGS fan blade and Extreme Cooling System that enhances the overall heat dissipation, airflow and air pressure of the graphics card. As it also features a PCI-e 8-pin power connector, it allows a seamless upgrade for most of the existing system.


Supported by Xtreme Tuner App for mobile 1-Click OC, GPU info on-screen display and advanced OC settings.





Product Code: 46NSL8MD8NWE


EAN: 4895147153698


Product Driver: Download


High-Res Photo: Download


User Manual: Download













1-Click OC allows you to boost your graphics cards with just one click! Download Xtreme Tuner Plus now!

PC: Download Android: Download iOS: Download


Customize your ARGB color with Xtreme Tuner Plus, or synchronize with your system. Connect the graphics card to 5V ARGB header on your motherboard or other ARGB control system, by using the included cable.

Quick User Guide


  • NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
  • 4th Generation Tensor Cores: Up to 2X AI performance
  • 3rd Generation RT Cores: Up to 2X ray tracing performance
  • Microsoft DirectX® 12 Ultimate
  • GDDR6 Graphics Memory
  • NVIDIA DLSS
  • NVIDIA® GeForce Experience™
  • NVIDIA G-SYNC®
  • NVIDIA GPU Boost™
  • Game Ready Drivers
  • Vulkan RT API, OpenGL 4.6
  • DisplayPort 1.4a, HDMI 2.1
  • HDCP 2.3
  • VR Ready
  • To 1-Click OC, overclock, control ARGB and monitor GPU info of your graphics cards in-App, please make sure your mobile device and PC are connected with the same WiFi network.
  • All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor / importer for confirmation.
GPU Engine Specs:
  • CUDA Cores: 3072
  • Boost Clock: 2565MHz
  • 1-Click OC Clock: 2580MHz (by installing Xtreme Tuner Plus Software and using 1-Click OC)
Memory Specs:
  • Memory Speed: 17 Gbps
  • Standard Memory Config: 8GB
  • Memory Interface Width 128-bit GDDR6
  • Memory Bandwidth: 272 GB/sec
Feature Support:
  • PCI-E 4.0
  • Windows 10/11 64-bit
Fan Feature:
  • 2 * 102mm
  • WINGS with Fan stop @ Idle (All Fans)
Display Support:
  • DisplayPort 1.4a x 3, HDMI 2.1a x 1
Dimensions:
  • Dimensions(with Bracket): 264 * 145 * 41mm
  • Dimensions(without Bracket): 251 * 130 * 40mm
In Box Accessories:
  • 1-Click Sync Pro cable
  1. PCI Express-compliant motherboard with one x16 graphics slot
  2. System Space for 2-slot card required
  3. PSU with 1x PCIe 8-pin power connectors
  4. Minimum 550W or greater system power supply
    (Minimum is based on a PC configured with a Ryzen 9 5900X processor. Power requirements can be different depending on system configuration.)
  5. 32GB system memory recommended)
  6. Microsoft Windows 10/11 64-bit (Build 2004 or later recommended)
