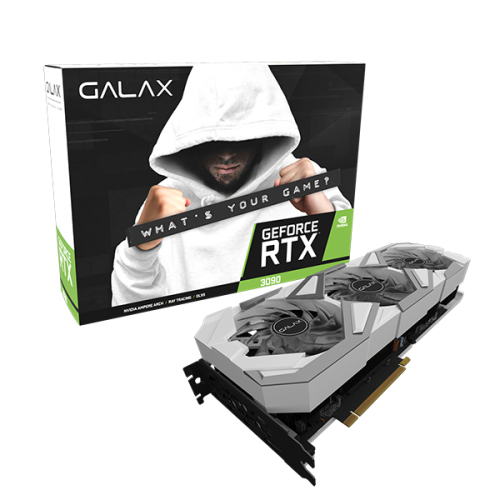

GALAX GeForce RTX™ 3090 EX Gamer White (1-Click OC Feature)

GALAX GeForce RTX™ 3090 EX Gamer White (1-Click OC Feature)

GALAX GeForce RTX™ 3090 EX Gamer White (1-Click OC Feature)

24GB GDDR6X 384-bit DP*3/HDMI/

Leading the new fan size trend, GALAX triple fans GeForce RTX™ 30 EX Gamer Series adopted our latest Tri-Wings Systems with 102mm fan in the middle and 92mm fans on both sides. Apart from the new fans size, GALAX offer three styles to bring out different character in users.


Like EX series, EX Gamer edition also adopted non reference design PCB and is ready to provide stable performance and overclocking room for users. Equipped with shielded metal power connectors, it enhances durability and provide a more sophisticated look.


Product Code: 39NXM5MD2GNG


EAN: 4895147142258


Product Driver: Download


High-Res Photo: Download













1-Click OC allows you to boost your graphics cards with just one click! Download Xtreme Tuner now!
PC: Download
Android: Download
iOS: Download
Customize your RGB color with Xtreme Tuner, or synchronize with the rest of your system, by connecting the graphics card to +12V RGB header of your motherboard or other RGB control system, using the included cable..Quick User Guide

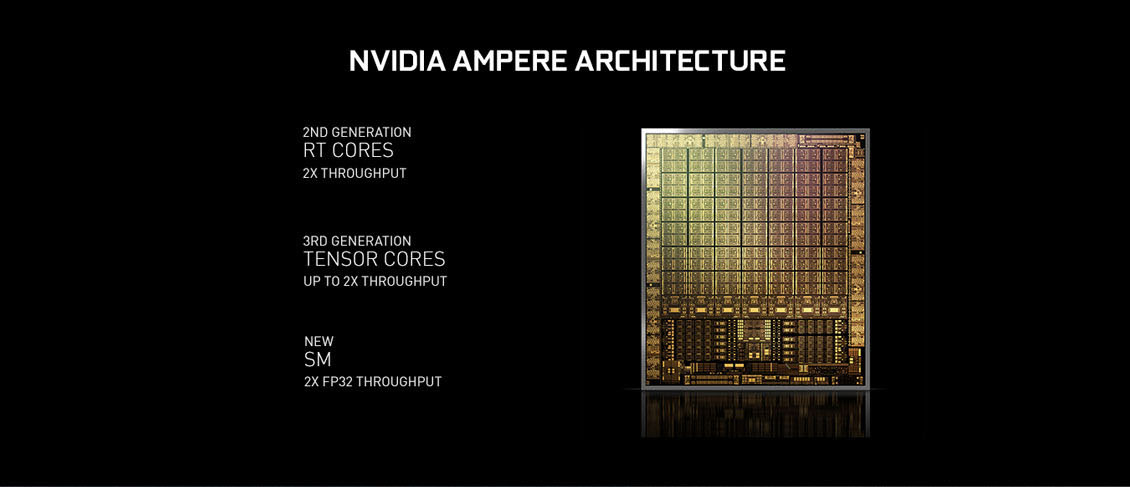

  • 2nd Gen Ray Tracing Cores
  • 3rd Gen Tensor Cores
  • Microsoft® DirectX® Ultimate
  • GDDR6X Graphics Memory
  • NVIDIA DLSS
  • NVIDIA® GeForce Experience™
  • NVIDIA G-SYNC®
  • NVIDIA GPU Boost™
  • Game Ready Drivers
  • Vulkan RT API, OpenGL 4.6
  • DisplayPort 1.4a, HDMI 2.1
  • HDCP 2.3
  • VR Ready
  • NVIDIA® NVLink® (SLI Ready)
  • All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor / importer for confirmation.
GPU Engine Specs:
  • CUDA Cores 10496
  • Boost Clock (MHz) 1740
  • 1-Click OC Clock (MHz) 1755 (by installing Xtreme Tuner Plus Software and using 1-Click OC)
Memory Specs:
  • Memory Speed 19.5 Gbps
  • Standard Memory Config 24GB
  • Memory Interface Width 384-bit GDDR6X
  • Memory Bandwidth (GB/sec) 936
Feature Support:
  • PCI-E 4.0
  • Windows 10 64-bit, Linux 64-bit
Fan Feature:
  • 1*102mm, 2*92mm
  • Fan stop @ Idle (All Fan)
Display Support:
  • DisplayPort 1.4a x 3, HDMI 2.1
Dimensions:
  • Dimensions(with Bracket): 330*142*58mm
  • Dimensions(without Bracket): 316*124*58mm

Resizable BAR BIOS update for GeForce RTX 30 series: Download

  1. PCI Express-compliant motherboard with one dual-width x 16 graphics slot
  2. System Space for 3-slot card required
  3. 2 x PCIe 8-pin supplementary power connectors
  4. Minimum 750W or greater system power supply
  5. 32GB system memory recommended)
  6. Microsoft Windows 10 64-bit (Build 2004 or later recommended) or Linux 64-bit
