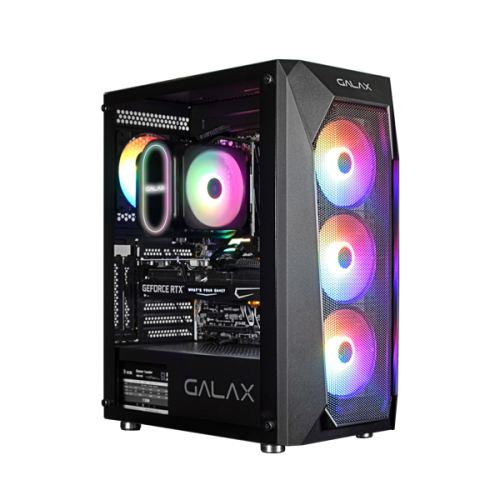

GALAX PC Case (REV-05)

ATX, M-ATX, ITX

Compatible with ATX, M-ATX, ITX motherboards, REV-05 is by far the tallest PC case in the Revolution family. Standing tall at 470mm, it provides a spacious interior for customization, allowing you to choose between vertical or horizontal mounting for the graphics card and maximizing cooling and storage potential for your next build.


Product Code: CGG5ANBA4B0


EAN: 4895147147970


High Res Image: Download


User Manual: Download













Best Value Award by Vmodtech.com (Thailand)
Best Performance Award by Vmodtech.com (Thailand)

  • All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor / importer for confirmation.
  Form Factor (Midi, Micro, Mini ITX, Full) ATX, M-ATX, ITX
  Chassis

SPCC + Tempered Glass

  PSU Form Factor ATX
  M/B Form Factor ATX, M-ATX, ITX
  Front Panel ABS,Mesh cover
  Top Panel Metal cover
Side Panel Left Tempered Glass
Right Metal cover
External Drive Bay(s) 5.25" (ODD) *0
3.5" *0
Internal Drive Bay(s) 3.5" (HDD) *2
2.5" (SSD) *3
I/O Buttons  *2
USB1.1 Port(s) *0
USB2.0 Port(s) *2
USB3.0 Port(s) *1
USB3.1 Port(s) *0
HD Audio Support *1
Card Reader (Support) *0
P-Lock *0
RGB Controller *0
Controller max. fans *0
RGB Controller max. LED strips *0
Remote (IR or RF) *0
Cooling Fan Support Front 3x120mm (Fan optional)
Top 2x120mm,2x140mm (Fan optional)
Rear 1x120mm (Fan optional)
Side 0
Bottom 2x120mm (Fan optional)
Water Cooling Support
(Radiator Size)
Front 240mm/280mm/360mm
Top 240mm/280mm
Rear 120mm
Dimensions Chassis (L)350*(W)205*(H)470mm
Full Case (inc Fascia) (L)400.6*(W)205*(H)481.5mm
Carton (L)532*(W)258*(H)465mm
Net Weight (Kg) 4.3KG
Gross Weight (Kg) 4.95KG
  VGA Card Length up to 330mm
  CPU Cooler Height 160mm
  Cable Management Depth 18mm
