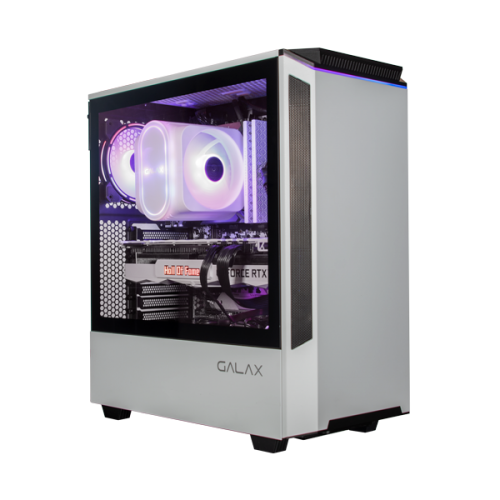

GALAX PC Case (REV-02)

EATX, ATX,Micro, Mini ITX

REV-02 lands with an all new arctic white aesthetic. It is compatible with EATX, ATX,Micro and Mini ITX motherboards, as well as allowing the installation of up to 5 cooling fans. As it also features a tempered glass cover which only requires a single screw piece to hold it in place, the ease of installation and tinkering is totally unbeatable. If you enjoy RGB effects, REV-02 also comes in with an ARGB controller!


Product Code: CG02ANWA1A0


EAN: 4895147145907


High Res Image: Download


User Manual: Download





  • All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor / importer for confirmation.
  Form Factor (Midi, Micro, Mini ITX, Full)   EATX, ATX,Micro, Mini ITX
  Chassis

SPCC Rear:0.8mm, Left/right/Top/front:06mm, other:0.5mm. Black painting interior

  PSU Form Factor   Bottom/ATX
  M/B Form Factor   EATX(282*305mm)、ATX、M-ATX、ITX
  Front Panel   ABS, Mesh
  Top Panel   Metal cover
Side Panel Left   Tempered Glass
Right   Metal cover
External Drive Bay(s) 5.25" (ODD)   *0
3.5"   *0
Internal Drive Bay(s) 3.5" (HDD)   *2
2.5" (SSD)   *2
1*3.5HDD+3*2.5SSD  or  2*3.5HDD+2*2.5SSD
I/O Buttons   *3
USB1.1 Port(s)   *0
USB2.0 Port(s)   *2
USB3.0 Port(s)   *2
USB3.1 Port(s)   *0
HD Audio Support   *1
Card Reader (Support)   *0
P-Lock   *0
RGB Controller   *1  Rainbow+PWM V2.0
Controller max. fans   *5
RGB Controller max. LED strips   *2
Remote (IR or RF)   *0
Cooling Fan Support Front   2x120mm,2x140mm(Fan optional)
Top   2x120mm ,2x140mm (Fan optional)
Rear   1x120mm (Fan optional)
Left Side   0
PSU Cover   0
Water Cooling Support
(Radiator Size)
Front   120mm*1, 140mm*1,240mm*1,280mm*1
Top   120mm*1, 240mm*1,140mm*1,280mm*1
Rear   120mm*1
  Dust Cover   Bottom and top cover with dust filter
  Slots   *7
Dimensions Chassis mm (L)390*(W)210*(H)445mm
Full Case (inc Fascia) mm (L)438*(W)210*(H)468mm
Carton mm (L)515*(W)280*(H)505mm
Net Weight (Kg) kg
Gross Weight (Kg) kg
  VGA Card Length mm up to 360
  CPU Cooler Height mm 170
  Cable Management Depth mm 37.5
