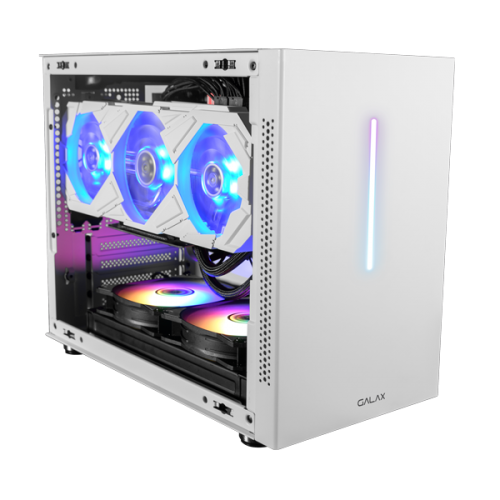

GALAX PC Case (REV-03)


Compatible with M-ATX and ITX motherboards, REV-03 is also a 2 in 1 compact build PC case which supports water cooling installation. It's small but mighty, enhancing your gaming experience!

Product Code: CGG3IRWANA0

EAN: 4895147146591

High Res Image: Download

User Manual: Download

  • All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor / importer for confirmation.
  Form Factor (Midi, Micro, Mini ITX, Full)   M-ATX/ITX

SPCC + Tempered Glass

  PSU Form Factor   ATX/MATX
  M/B Form Factor   M-ATX/ITX
  Front Panel   Metal cover
  Top Panel   Metal cover
Side Panel Left   Metal cover
Right   Metal cover
External Drive Bay(s) 5.25" (ODD)   *0
3.5"   *0
Internal Drive Bay(s) 3.5" (HDD)   *3
2.5" (SSD)   *3
I/O Buttons    *2
USB1.1 Port(s)   *0
USB2.0 Port(s)   *0
USB3.0 Port(s)   *2
USB3.1 Port(s)   *0
HD Audio Support   *1
Card Reader (Support)   *0
P-Lock   *0
RGB Controller   *0
Controller max. fans   *0
RGB Controller max. LED strips   *0
Remote (IR or RF)   *0
Cooling Fan Support Front   0
Top   2x120mm (Fan optional)
Rear   2x80mm (Fan optional)
Side   2x120mm/2x140mm (Fan optional) (Fan Bracket required)
Bottom   2x120mm (Fan optional)
Water Cooling Support
(Radiator Size)
Front   0
Top   240mm*1 (if MATX motherboard installed)
Rear   0
Side   120/240mm (max. 280mm, thickness depends on PSU/Memory)
Bottom   120mm*1
Dimensions Chassis mm (L)391*(W)185*(H)303mm
Full Case (inc Fascia) mm
Carton mm
Net Weight (Kg) kg
Gross Weight (Kg) kg
  VGA Card Length mm up to 335mm (245mm if ATX PSU installed vertically)
  CPU Cooler Height mm 155mm (88mm if with vertical VGA card installed)
  Cable Management Depth mm
