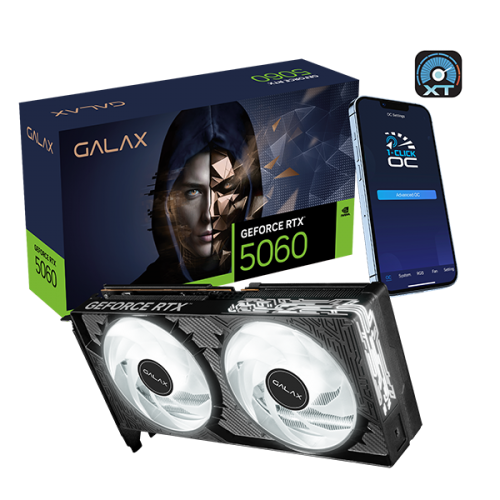

GALAX GeForce RTX™ 5060 1-Click OC (Launch Edition)

GALAX GeForce RTX™ 5060 1-Click OC (Launch Edition)

GALAX GeForce RTX™ 5060 1-Click OC (Launch Edition)

8GB GDDR7 128-bit/DP2.1b*3/HDMI 2.1b/DLSS 4

Joining the GeForce RTX 50 Series family, the NVIDIA GALAX GeForce RTX 5060 1-Click OC takes the stage as the latest addition of the brand-new lineup. Featuring 3*6mm heat pipes and the dual 92mm WINGS 3.0 fans that effectively dissipate heat of the graphics cards, the GPUs are optimized to run at optimal temperatures for sustained peak AI performance, letting the users to harness the groundbreaking power of NVIDIA’s newest Blackwell architecture.


It deliver world-leading AI performance for compact PCs, uplifting gaming experiences with faster speed and stunning visuals while simultaneously accelerating workflows for increased productivity.


Product Code:56NSN8MDCPLE


EAN: 4895147159959


Product Driver: Download


High-Res Photo: Download


User Manual: Download









1-Click OC allows you to boost your graphics cards with just one click! Download Xtreme Tuner Plus now!

PC: Download Android: Download iOS: Download
  • NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
  • 4th Generation Tensor Cores: Up to 2X AI performance
  • 3rd Generation RT Cores: Up to 2X ray tracing performance
  • Microsoft DirectX® 12 Ultimate
  • GDDR6 Graphics Memory
  • NVIDIA DLSS
  • NVIDIA® GeForce Experience™
  • NVIDIA G-SYNC®
  • NVIDIA GPU Boost™
  • Game Ready Drivers
  • Vulkan RT API, OpenGL 4.6
  • DisplayPort 1.4a, HDMI 2.1
  • HDCP 2.3
  • VR Ready
  • To 1-Click OC, overclock, control ARGB and monitor GPU info of your graphics cards in-App, please make sure your mobile device and PC are connected with the same WiFi network.
  • All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor / importer for confirmation.
  • Circuit board connected to the motherboard of a data processing machine through connections.
  • PCI or PCI-Express with Video Graphics Adapter (VGA) function.
  • Placa de Circuito conectada a placa mãe de uma máquina de processamento de dados através de conexões;
  • PCI ou PCI-Express com função de adaptador Gráfico de Vídeo (VGA)
GPU Engine Specs:
  • CUDA Cores: 3840
  • Boost Clock: 2512MHz
  • 1-Click OC Clock: 2527MHz (by installing Xtreme Tuner Plus Software and using 1-Click OC)
Memory Specs:
  • Memory Speed: 28 Gbps
  • Standard Memory Config: 8GB
  • Memory Interface Width 128-bit GDDR7
  • Memory Bandwidth: 448 GB/sec
Feature Support:
  • PCI-E 4.0
  • Windows 10/11 64-bit
Fan Feature:
  • 1 * 92mm
  • WINGS 3.0 with Fan stop @ Idle (All Fans)
Display Support:
  • DisplayPort 2.1b x 3, HDMI 2.1b x 1
Dimensions:
  • Dimensions(with Bracket): 247*131*40.6mm
  • Dimensions(without Bracket): 235*115.5*39.6mm

  1. PCI Express-compliant motherboard with one x16 graphics slot
  2. System Space for 2 slot card required
  3. PSU with 1 x PCIe 8-pin power connector
  4. Minimum 550W or greater system power supply (Minimum is based on a PC configured with a Ryzen 9 9950X processor. Power requirements can be different depending on system configuration.)
  5. 32GB system memory recommended
  6. Microsoft Windows 10/11 64-bit (Build 2004 or later recommended)
