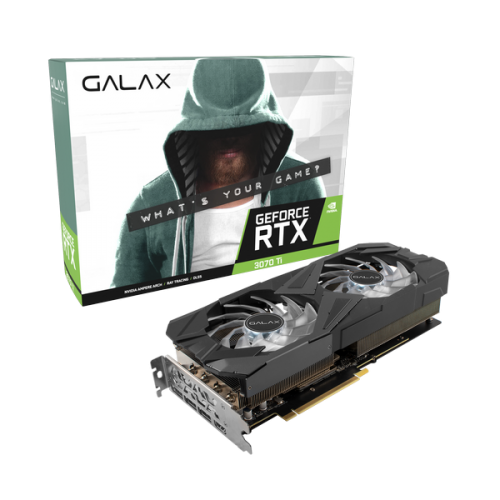

GALAX GeForce RTX™ 3070 Ti EX (1-Click OC Feature)

8GB GDDR6X 256-bit DP*3/HDMI/

For the EX series, we have an innovative fan design that creates a new trend in GPU cooling with the 102mm twin fans along with our proprietary Fan Blade - “Wings”. 11 fan blades being extraordinary, not only for the exquisite look but also providing high air flow and air pressure at minimum noise level. GALAX is bringing the new fans era to the world with its EX series.


Aside from the cooler, EX series also adopted non reference design PCB with enlarged area for more relaxed component layout and low heat density. Extra power phases also allow better power delivery and higher overclocking potential.


Product Code: 37ISM6MD4DEX


EAN: 4895147144207


Product Driver: Download


High-Res Photo: Download













































1-Click OC allows you to boost your graphics cards with just one click! Download Xtreme Tuner now!
PC: Download
Android: Download
iOS: Download
Recommended by HardwareInside (Germany)
Recommended by Game Zoom (Germany)
Five Stars by NewEsc (Spain)
Five Stars by Leak (Portugal)
Excellent Award by PCGuia (Portugal)
Gold Award by Hardware-Helden (Germany)
Recommended by TechStage (Germany)
Price-Performance Award by Allround-PC (Germany)
Gold Award by PC Masters (Germany)
  • 2nd Gen Ray Tracing Cores
  • 3rd Gen Tensor Cores
  • PCI Express® Gen 4
  • Microsoft® DirectX® 12 Ultimate
  • GDDR6X Graphics Memory
  • NVIDIA DLSS
  • NVIDIA® GeForce Experience™
  • NVIDIA G-SYNC®
  • NVIDIA GPU Boost™
  • Game Ready Drivers
  • Vulkan RT API, OpenGL 4.6
  • DisplayPort 1.4a, HDMI 2.1
  • HDCP 2.3
  • VR Ready
  • All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor / importer for confirmation.
GPU Engine Specs:
  • CUDA Cores 6144
  • Boost Clock (MHz) 1800
  • 1-Click OC Clock (MHz) 1815 (by installing Xtreme Tuner Plus Software and using 1-Click OC)
Memory Specs:
  • Memory Speed 19 Gbps
  • Standard Memory Config 8GB
  • Memory Interface Width 256-bit GDDR6
  • Memory Bandwidth (GB/sec) 608
Feature Support:
  • PCI-E 4.0
  • Windows 10 64-bit, Linux 64-bit
Fan Feature:
  • 2*102mm
  • Fan stop @ Idle (All Fan)
Display Support:
  • DisplayPort 1.4a x 3, HDMI 2.1
Dimensions:
  • Dimensions(with Bracket): 299*139*58mm
  • Dimensions(without Bracket): 285*124*58mm
  1. PCI Express-compliant motherboard with one dual-width x 16 graphics slot
  2. System Space for 3-slot card required
  3. 2 x PCIe 8-pin supplementary power connectors
  4. Minimum 750W or greater system power supply
  5. 32GB system memory recommended)
  6. Microsoft Windows 10 64-bit (Build 2004 or later recommended) or Linux 64-bit
