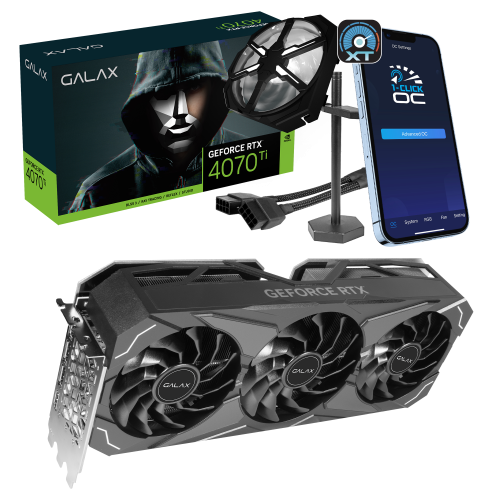

GALAX GeForce RTX™ 4070 Ti ST 1-Click OC

12GB GDDR6X 192-bit DP*3/HDMI 2.1/DLSS 3

Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace architecture, and full ray tracing, GALAX GeForce RTX 4070 Ti ST features the brand-new 13-phrase power design, 7680 CUDA cores and the boost clock of 2610MHz(1-Click OC Clock 2625MHz), offering the next-gen performance with the latest NVIDIA Ada Lovelace architecture. With upgraded exclusive EXTREME thermal cooling system, the GPU delivers excellent cooling efficiency alongside exceptional performance.


To deliver better support for the GPU is also bundled with a GPU support stick. A PCIe 16-pin to 2x 8-pin adaptor is also included.


Product Code: 47IOM7MD6TTS


EAN: 4895147151526


Product Driver: Download


High-Res Photo: Download





















1-Click OC allows you to boost your graphics cards with just one click! Download Xtreme Tuner Plus now!

PC: Download Android: Download iOS: Download


1-Clip Booster 2.0 is an additional fan that comes with selected 40 series GPUs. It is optional for users to install at their discretion.

Quick Installation Guide


Excellent Award by PCGuia (Portugal)
Platinum Award by Profesional Review (Spain)
  • NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
  • 4th Generation Tensor Cores: Up to 2X AI performance
  • 3rd Generation RT Cores: Up to 2X ray tracing performance
  • Microsoft DirectX® 12 Ultimate
  • GDDR6X Graphics Memory
  • NVIDIA DLSS
  • NVIDIA® GeForce Experience™
  • NVIDIA G-SYNC®
  • NVIDIA GPU Boost™
  • Game Ready Drivers
  • Vulkan RT API, OpenGL 4.6
  • DisplayPort 1.4a, HDMI 2.1
  • HDCP 2.3
  • VR Ready
  • To 1-Click OC, overclock, control ARGB and monitor GPU info of your graphics cards in-App, please make sure your mobile device and PC are connected with the same WiFi network.
  • All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor / importer for confirmation.
GPU Engine Specs:
  • CUDA Cores: 7680
  • Boost Clock: 2610MHz
  • 1-Click OC Clock: 2625MHz (by installing Xtreme Tuner Plus Software and using 1-Click OC)
Memory Specs:
  • Memory Speed: 21 Gbps
  • Standard Memory Config: 12GB
  • Memory Interface Width 192-bit GDDR6X
  • Memory Bandwidth: 504 GB/sec
Feature Support:
  • PCI-E 4.0
  • Windows 10/11 64-bit
Fan Feature:
  • 2 * 92mm, 1 * 102mm
  • WING 2.0 with Fan stop @ Idle (All Fan)
Display Support:
  • DisplayPort 1.4a x 3, HDMI 2.1 x 1
Dimensions:
  • Dimensions(with Bracket): 336 * 148 * 62mm
  • Dimensions(without Bracket): 320 * 133 * 62mm
In Box Accessories:
  • 1-Clip Booster 2.0 Fan
  • Aluminum GPU Support Stick
  • PCIe 16-pin to 2x PCIe 8-pin adaptor
  1. PCI Express-compliant motherboard with one x16 graphics slot
  2. System Space for 3-slot card required
  3. PSU with native 300W PCIe Gen5 16-pin power connector, or minimum 2x PCIe 8-pin power connectors (use with included adapter)
  4. Minimum 700W or greater system power supply
    (Minimum is based on a PC configured with a Ryzen 9 5900X processor. Power requirements can be different depending on system configuration.)
  5. 32GB system memory recommended)
  6. Microsoft Windows 10/11 64-bit (Build 2004 or later recommended)
  7. 1-Clip Booster 2.0 Fan is 22mm x 130mm in height and length and is 195mm away measured from the graphics card bracket, please check your motherboard for compatibility before installation
