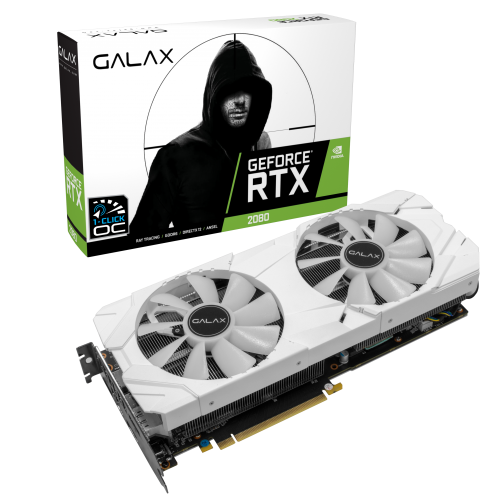

GALAX GeForce® RTX 2080 EX White (1-Click OC) (V2)

8GB GDDR6 256-bit DP*3/HDMI/

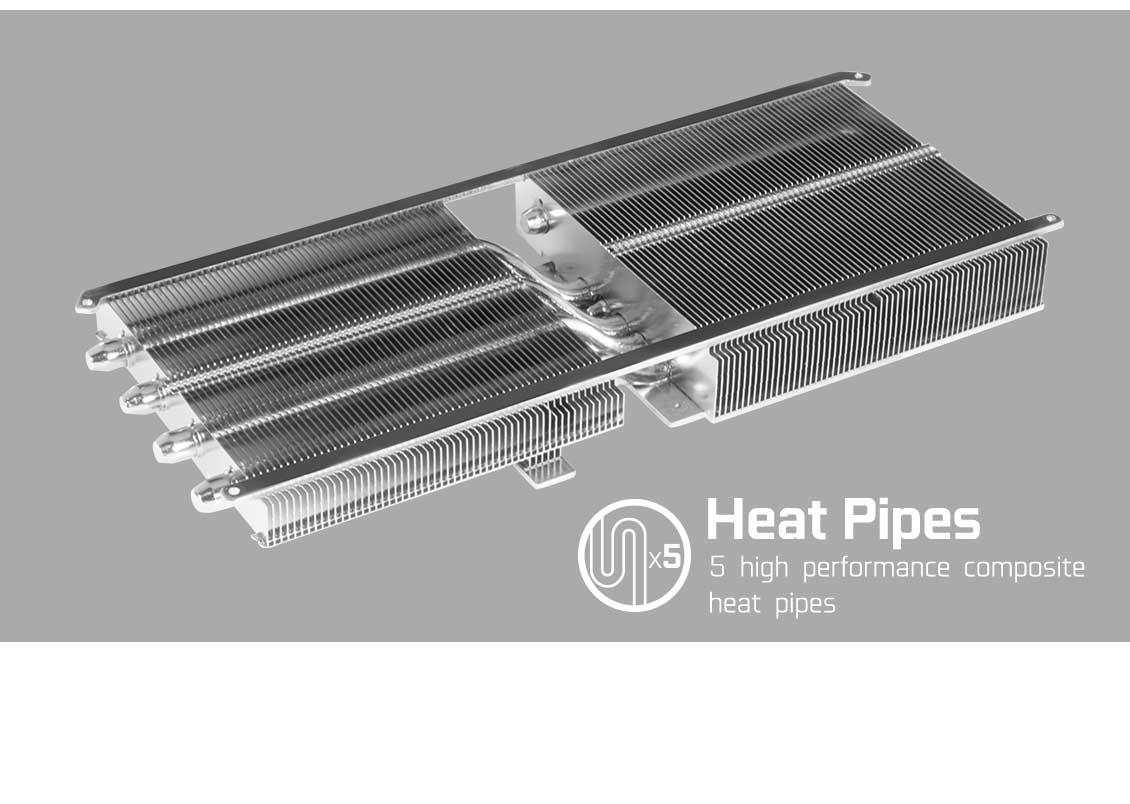

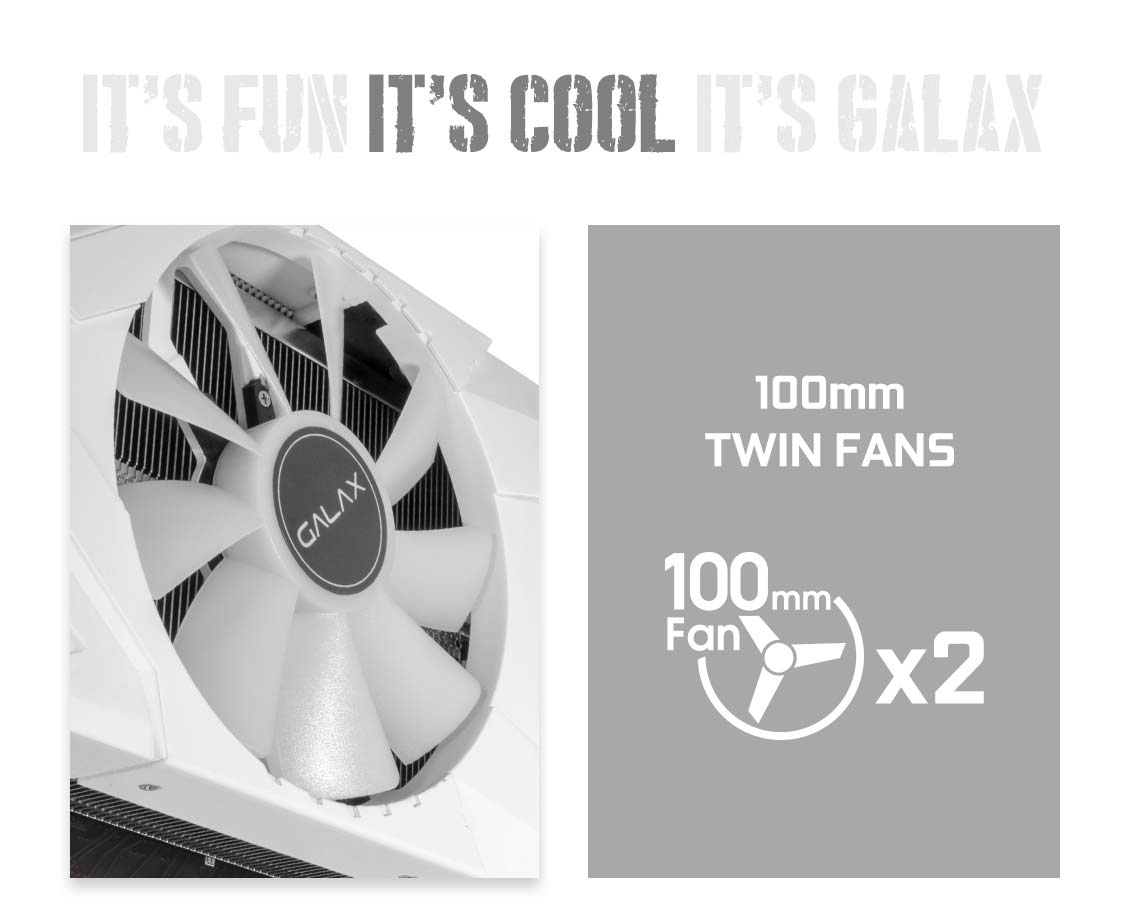

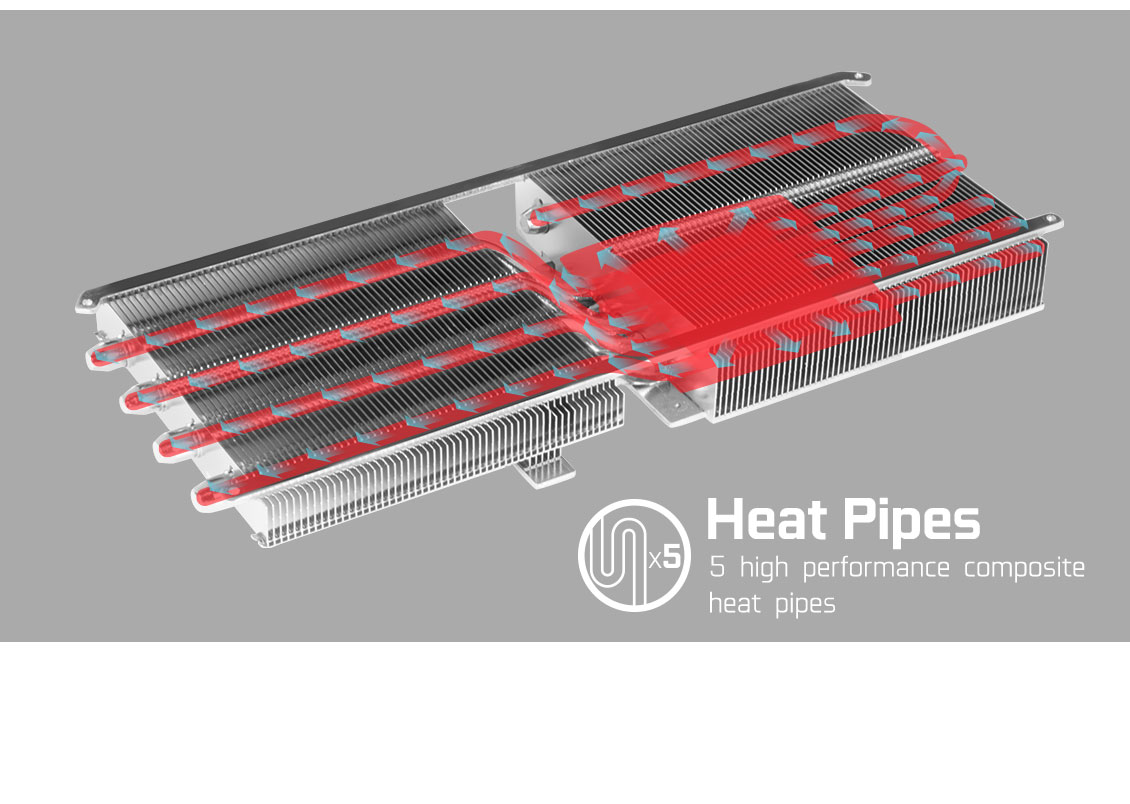

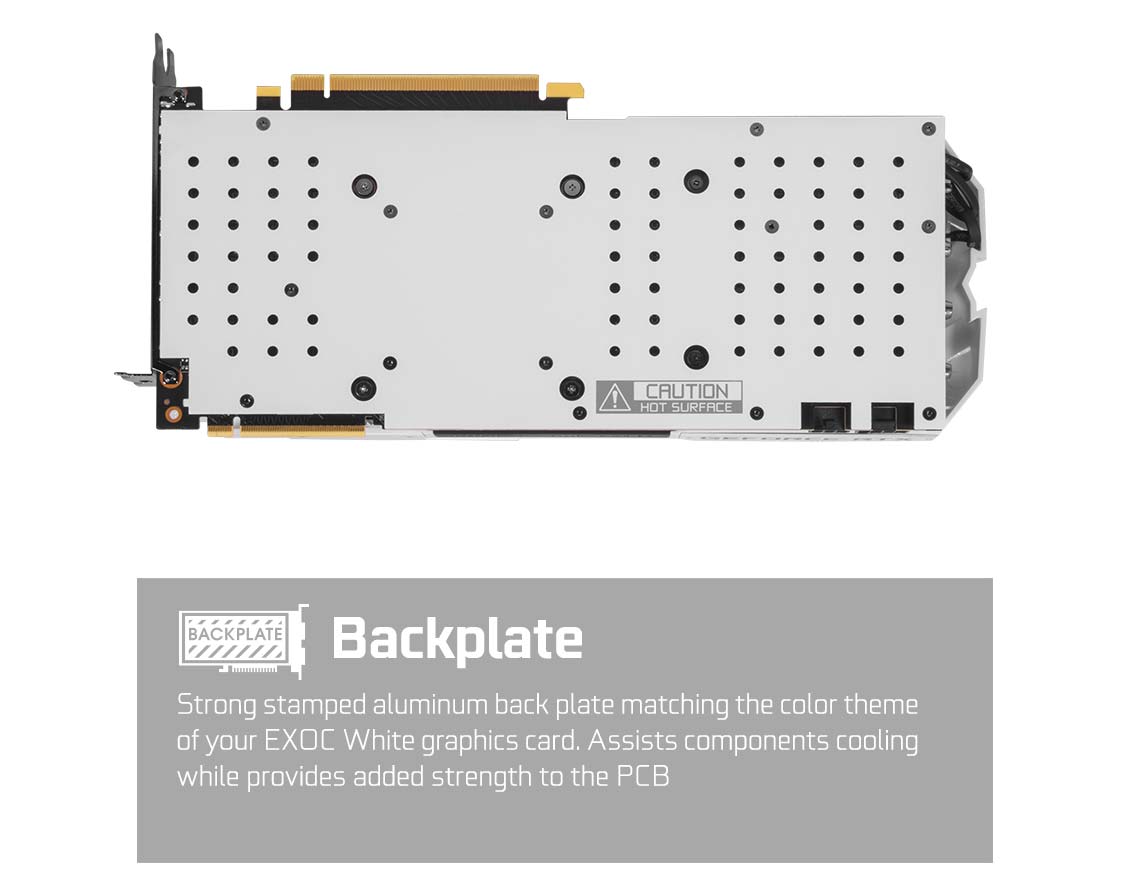

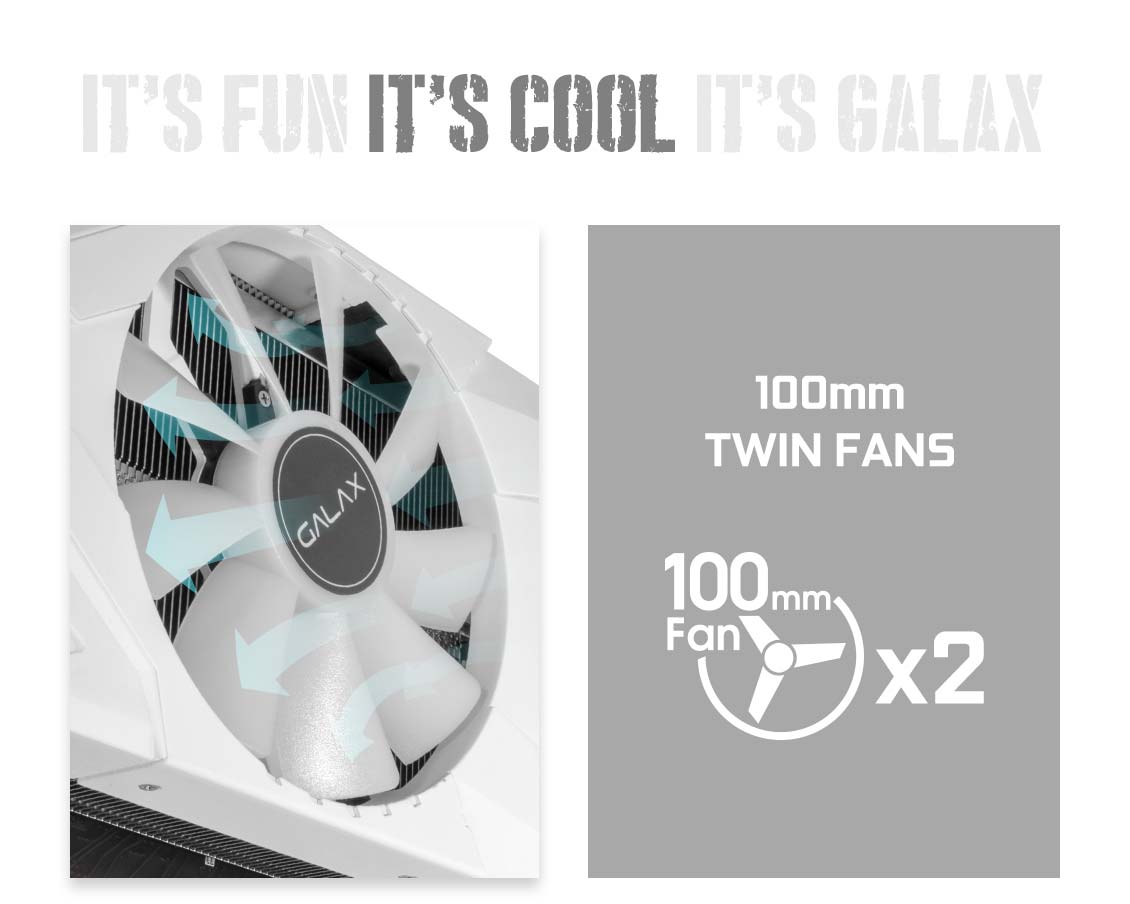

Equipped with 100 mm twin fans and 5 high performance composite heat pipes, it can transfer much higher powers for a given temperature gradient than the best metallic conductors. Our customized strong stamped aluminum back plate matching the color theme of the EX graphics card. Assists components cooling while provides added strength to the PCB.



Product Code 28NSL6MDU8W2


UPC Code 4895147134369




Product Driver:
Download



High-Res Photo:
Download









1-Click OC allows you to boost your graphics cards with just one click! Download
  • Real-Time Ray Tracing
  • NVIDIA® GeForce Experience
  • NVIDIA® Ansel
  • NVIDIA® G-SYNC™ Compatible
  • NVIDIA® Highlights
  • Game Ready Drivers
  • Microsoft® DirectX® 12 API, Vulkan API, OpenGL 4.6
  • DisplayPort 1.4, HDMI 2.0b
  • HDCP 2.2
  • NVIDIA® GPU Boost™
  • VR Ready
  • All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor / importer for confirmation.
  • GPU Engine Specs:
  • CUDA Cores 2944
  • Core Clock (MHz) 1710
  • 1-Click OC Clock (MHz) 1755 (by installing Xtreme Tuner Plus Software and using 1-Click OC)
  • Memory Specs:
  • Memory Speed 14Gbps
  • Standard Memory Config 8GB
  • Memory Interface Width 256-bit GDDR6
  • Memory Bandwidth (GB/sec) 448
  • Feature Support:
  • PCI-E 3.0
  • Windows 7 64-bit, Windows 10 64-bit, Linux 64-bit
  • Display Support:
  • DisplayPort 1.4 x 3, HDMI 2.0b
  • Dimensions(with Bracket): 295*143*52mm
  • Dimensions(without Bracket): 285*127*52mm
  1. PCI Express-compliant motherboard with one dual-width x 16 graphics slot
  2. 1x 6-pin & 1x 8-pin supplementary power connectors
  3. Minimum 650W or greater system power supply
  4. 1.5GB of available hard-disk space
  5. 8GB system memory (16GB or higher recommended)
  6. Microsoft Windows 10 64-bit (April 2018 update or later), Windows 7 64-bit, Linux 64-bit
