GALAX GeForce® GTX 1070 KATANA

GALAX GeForce® GTX 1070 KATANA

GALAX GeForce® GTX 1070 KATANA

8GB GDDR5 256-bit DP1.4/HDMI 2.0b/DVI-D

GALAX GeForce® GTX 1070 KATANA, the first GTX 1070 of single slot in the world, the thickness of which is only 16mm, thinner than the rest.



High Resolution Images:
Download



Product Driver:
Download


  • NVIDIA® GeForce® GTX® VR Ready
  • Simultaneous Multi-Projection
  • NVIDIA® Ansel
  • NVIDIA® G-SYNC™
  • NVIDIA® SLI® w/ HB Bridge Support
  • NVIDIA® GameStream™
  • NVIDIA® GPU Boost™ 3.0
  • Microsoft® DirectX® 12
  • Vulkan API
  • Open GL 4.5 Support
  • PCIe 3.0
  • Microsoft DirectX 12
  • OS Certification - Windows 7-10, Linux, Free85BSDx86

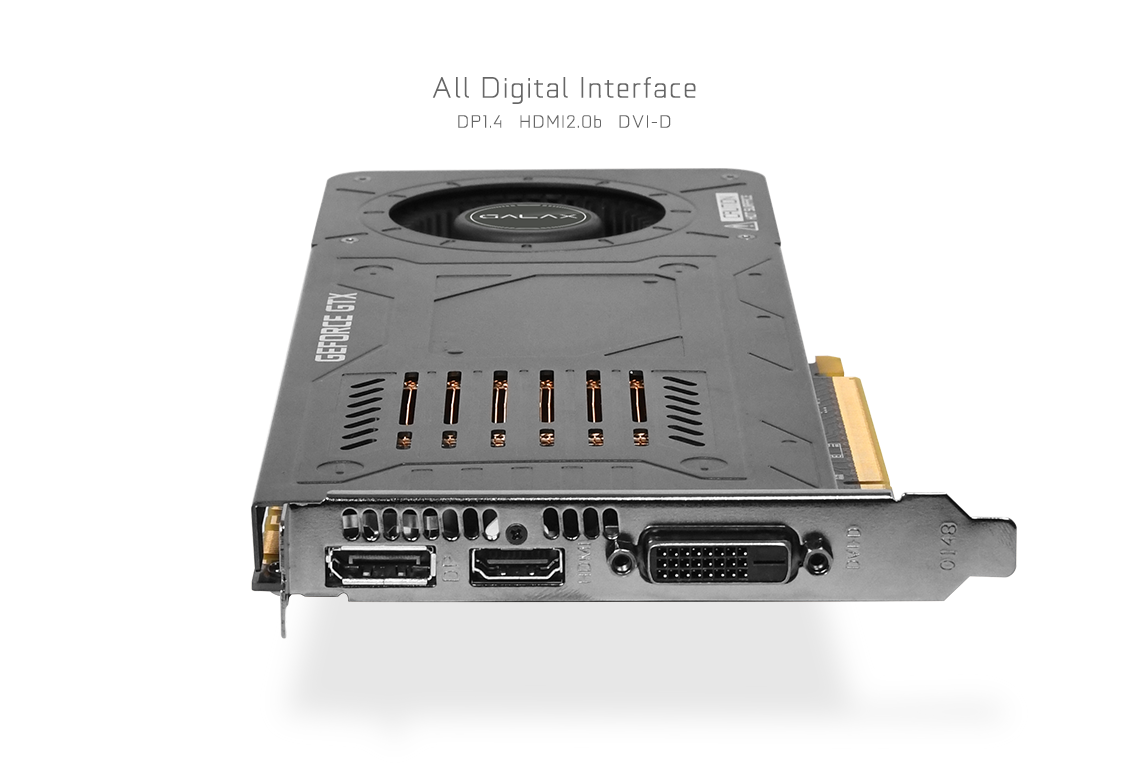

  • Display Connectors – DP1.4, HDMI 2.0b, DL-DVI-D
  • HDCP 2.2
  • Latest Display Interface Support DP 1.4
  • All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor / importer for confirmation.
  • This product description is not applicable in Australia.
  • GPU Engine Specs:
  • CUDA Cores 1920
  • Base Clock (MHz) 1518
  • Boost Clock (MHz) 1708
  • Memory Specs:
  • Memory Speed 8Gbps
  • Standard Memory Config 8GB
  • Memory Interface Width 256-bit GDDR5
  • Memory Bandwidth (GB/sec) 256
  • Feature Support:
  • OpenGL 4.5
  • Bus Support PCI-E 3.0
  • Certified for Windows 7-10, Linux, Free85BSDx86
  • Supported Technologies Microsoft® DirectX® 12
  • Virtual Reality Ready Yes
  • SLI Options
  • Display Support:
  • Multi Monitor 3 Displays
  • Maximum Digital Resolution 4096x2160
  • Maximum VGA Resolution 2560x1600
  • HDCP Yes
  • HDMI Yes
  • Standard Display Connectors DVI-D, HDMI, DP 1.4
  • Audio Input for HDMI Internal
  • Power Specs:
  • Maximum Graphics Card Power (W) 150W
  • Minimum System Power Requirement (W) 500W
  • Supplementary Power Connectors 1x8pin
  • Model:
  • Product Code 70NSH6DS2HRZ
  • UPC Code 4895147126098
  • Dimensions:
  • Dimensions(with Bracket): 267*124*18.74 mm
  • Dimensions(without Bracket): 253*111*15.84 mm
  1. PCI Express-compliant motherboard with one dual-width x 16 graphics slot
  2. 1x 8-pin PCI Express supplementary power connectors
  3. Minimum 500W or greater system power supply
  4. 350MB of available hard-disk space
  5. 8GB system memory (16GB or higher recommended)
  6. Microsoft Windows 10, Windows 8 & 8.1, Windows 7
  7. CD-ROM/DVD-ROM drive or Internet connection
  8. Windows XP no longer supported
