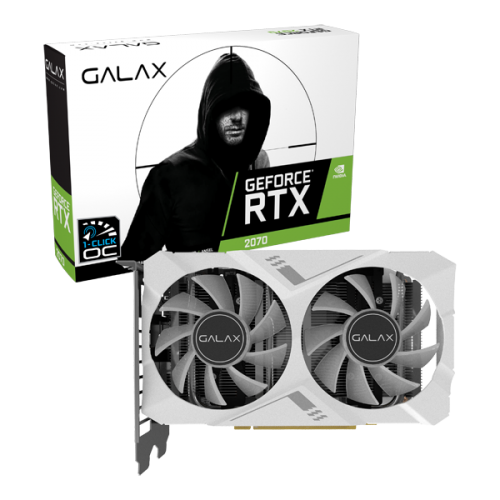

GALAX GeForce® RTX 2070 White Mini (1-Click OC)

8GB GDDR6 256-bit DP/HDMI/DVI-D

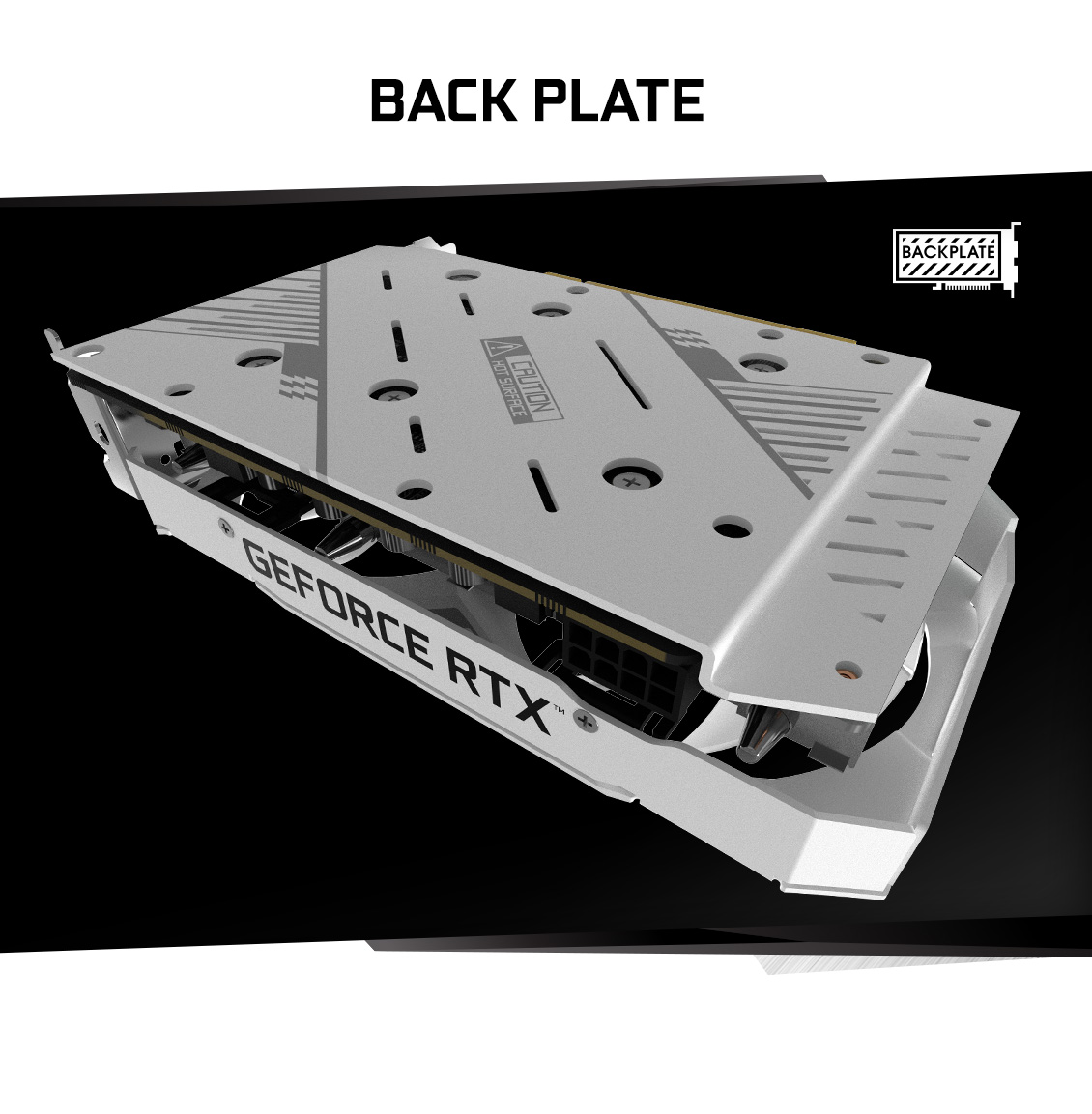

Featuring dual 80mm fans, it delivers an effective cooling system while its mini size makes it the most suitable choice for white ITX users with small cases, coincide with white back plate. The big cooler fans in the ITX size making it a great thermal performance for your compact gaming rig.



Product Code 27NSL6HPZ7MN


UPC Code 4895147133973




Product Driver:
Download



High-Res Photo:
Download

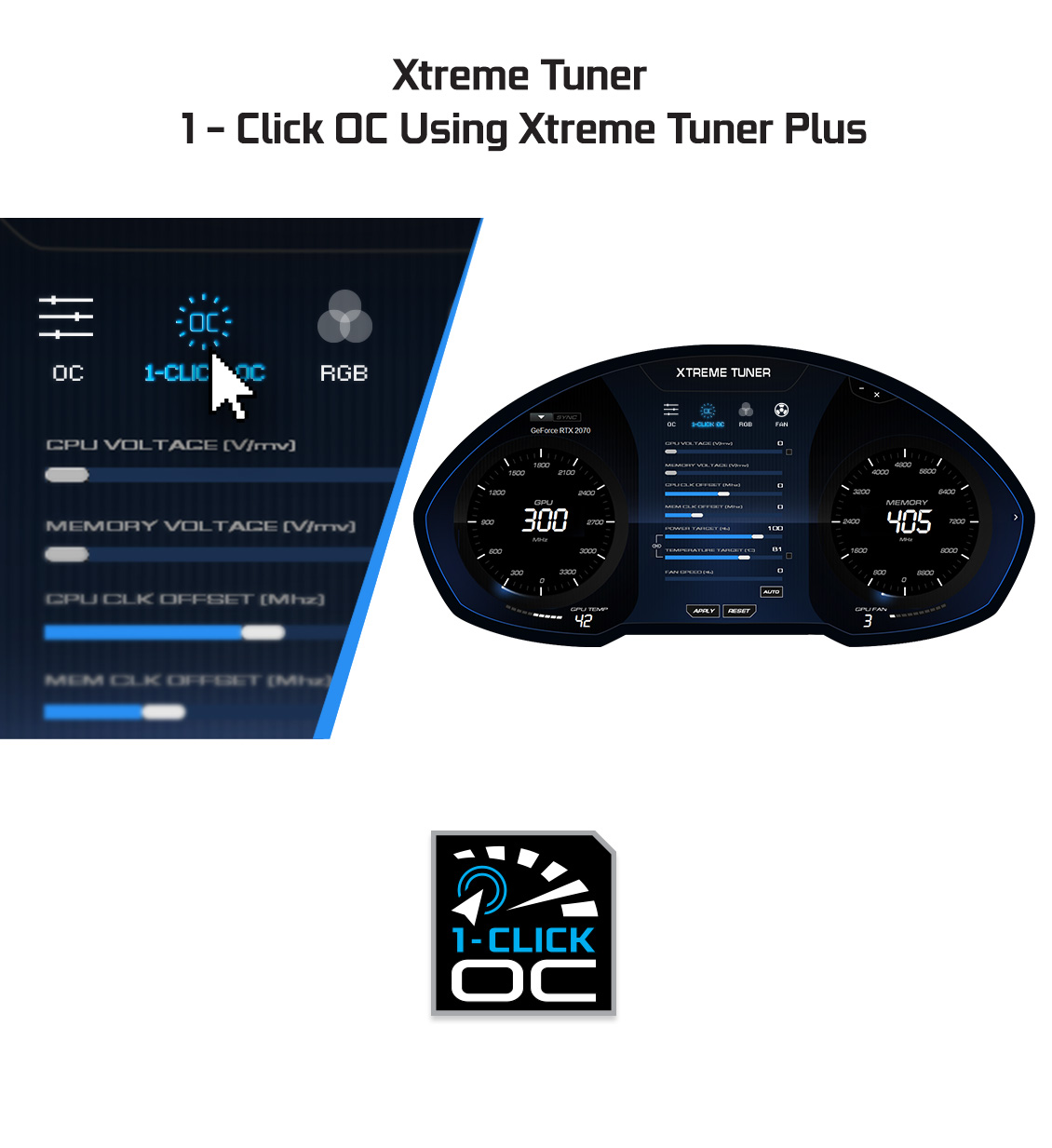

1-Click OC allows you to boost your graphics cards with just one click! Download
Media Award by Xfastest
Quality Award by IT Hardware
Gold Award by Elchapuzas Informatico
Editor's choice Award by Teck Know
  • Real-Time Ray Tracing
  • NVIDIA® GeForce Experience
  • NVIDIA® Ansel
  • NVIDIA® G-SYNC™ Compatible
  • NVIDIA® Highlights
  • Game Ready Drivers
  • Microsoft® DirectX® 12 API, Vulkan API, OpenGL 4.6
  • DisplayPort 1.4, HDMI 2.0b
  • HDCP 2.2
  • NVIDIA® GPU Boost™
  • VR Ready
  • All photos, specifications, contents are used for reference only and are subject to change without notice. Actual products in different countries varies and are best to consult your local distributor / importer for confirmation.
  • GPU Engine Specs:
  • CUDA Cores 2304
  • Core Clock (MHz) 1620
  • 1-Click OC Clock (MHz) 1665 (by installing Xtreme Tuner Plus Software and using 1-Click OC)
  • Memory Specs:
  • Memory Speed 14Gbps
  • Standard Memory Config 8GB
  • Memory Interface Width 256-bit GDDR6
  • Memory Bandwidth (GB/sec) 448
  • Feature Support:
  • PCI-E 3.0
  • Windows 7 64-bit, Windows 10 64-bit, Linux 64-bit
  • Display Support:
  • DisplayPort 1.4, HDMI 2.0b, Dual-Link DVI-D
  • Dimensions(with Bracket): 190*126*41mm
  • Dimensions(without Bracket): 175*111*38mm
  1. PCI Express-compliant motherboard with one dual-width x 16 graphics slot
  2. 1x 8-pin supplementary power connectors
  3. Minimum 550W or greater system power supply
  4. 1.5GB of available hard-disk space
  5. 8GB system memory (16GB or higher recommended)
  6. Microsoft Windows 10 64-bit (April 2018 update or later), Windows 7 64-bit, Linux 64-bit
