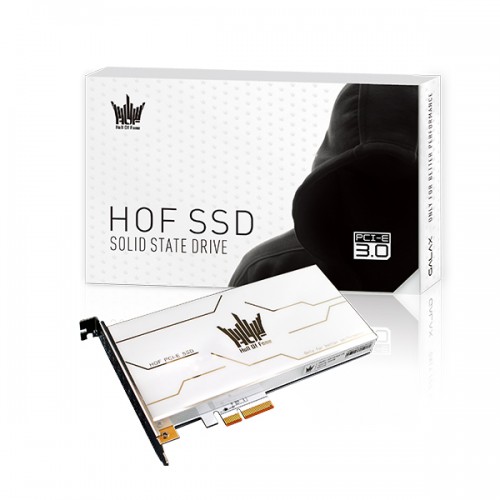

GALAX HOF SSD PCI-E 1TB

1 TB PCI-E 3.0 x4

HOF Series SSDs with Phison PS5008 controller, its Read/Write can reach up high performance based on Toshiba’s 15nm Toggle MLC flash. the power consumption of the AIC(Add-In Card) PCIe SSD is much lower than traditional hard drives.

Wishlist
  • PS5007-E7 AIC PCIe SSD can up to 120bits error in 2K Byte data.
  • PCIe interface, compliant with NVMe 1.2, Compatible with PCIe I/II/III x4 interface
  • Support up to queue depth 64k
  • Support power management
  • Support SMART AND TRIM COMMAND
  • Bad Block management
  • An adaptive approach to performance turning
  • Enterprise standard high temperature burn-in process
  • Provides advanced wear leveling algorithm, which can efficienty spread out the flash usage through the whole flash media era
  • Capacity/Actual Capacity 1024GB/953.87GB
  • Interface: PCI-E 3.0 x4, backward compatible with PCI-E Gen 1.0/2.0 x4
  • Controller: PS5007-E7
  • Flash: MLC NAND flash
  • Form Factor: AIC (HHHL)
  • Dimension: 184.0mm x 122.0mm x 23.0mm
  • MTBF: 1,000,000 hrs
  • Product Code: HOPA1F2TEBA28D4LWXWCXN
  • Sequential Read/Write Speed (6Gb/s)1: Up to 2200/1300 MB/s
  • Max random 4K-64Thrd Read/Write2: 200,000/170,000 IOPS
  1. Maximum sequential speeds measured with ATTO.
  2. 4KB random performance is measured with AS SSD Benchmark.
