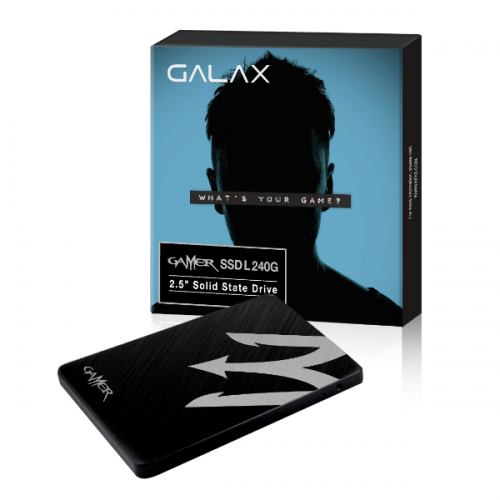

GALAX GAMER SSD L 240GB S11

240GB SATA III/6Gbps 2.5 Inches

GALAX always put their customer first and produce innovative products to fulfill the need of the market.The whole new GAMER L S11 Series will deliver industry leading random read speeds with consistent, reliable long-term performance and unparalleled energy efficiency to users.




High Resolution Images:
Download

  • SATA Interface:
  • Compliant with Serial ATA International Organization: Serial ATA Revision 3.2.
  • Compatible with 1.5/3.0/6.0Gbps SATA I/II/III interface
  • Support Power Management
  • Support expanded register for SATA protocol 48bits addressing mode
  • Embedded BIST function for SATA PHY for low cost mass production
  • High performance NAND flash
  • ECC Scheme:
  • PS3111 2.5” SSD applies the LDPC (Low Density Parity Check) of ECC algorithm
  • UART function
  • GPIO
  • Support SMART and TRIM commands
  • Capacity/Actual Capacity 240GB/223.57GB
  • Interface: SATAIII (6Gb/s), backward compatible SATAII
  • Controller: PHISON PS3111-S11
  • Flash: NAND flash
  • Form Factor: 2.5“
  • Dimension: 100mm x 69.85mm x 6.9mm
  • Product Code: TIAA1D4M4BG49CNSBCYDXN / TIAA1D2TEUA28BNSBCYDXN
  • Product Code: 4895147125879 / 4895147130965
