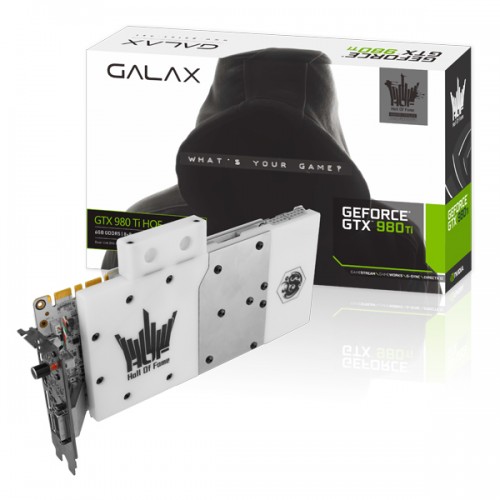

GALAX GEFORCE GTX 980 TI HOF WATERCOOLED

6GB DDR5 384-bit DVI-I/HDMI/3x DP

Working in-conjunction with Bitspower, GALAX has developed a water cooling solution designed to fully unleash the raw potential of the GTX 980Ti HOF graphics cards with the unprecedented cooling capacity needed for extreme overclocks.




High Resolution Images:
Download



Product Driver:
Download

  • Factory overclocked to 1304 MHz
  • 10 layer manufacturing process in HOF signature pure white colour
  • Extended PCB width for optimised layout and cleaner signal
  • Next generation IR3595 Digital PWM controller provides 2X switching frequency vs. previous generation
  • 8 phase GPU + 3 phase memory power
  • IR3555 with next gen DrMOS and 60A output
  • Aerospace-grade GALAX Extreme Power Inductors provide ultra-long life, high endurance and low noise vs. normal power inductors
  • Voltage tool (developed by enthusiasts) allows voltage beyond stock limits
  • Hardware dual BIOS simplifies the tweaking process by enabling risk-free firmware updates and customization

Water Block Key Features:

  • Custom engineered design to maximize coolant flow and heat transfer
  • Pure copper blocks
  • Full active cooling for all key components
  • Electroplated coppper surface increase durability
  • acrylic / white top
  • Full PCB coverage
  • NVIDIA® GeForce® GTX® VR Ready
  • NVIDIA® Dynamic Super Resolution (DSR)
  • NVIDIA® Global Illumination (VXGI)
  • NVIDIA® GameWorks Technology
  • NVIDIA® GameStream Technology
  • NVIDIA® TXAA Technology
  • NVIDIA GPU Boost 2.0
  • NVIDIA PhysX® Technology
  • NVIDIA FXAA Technology
  • NVIDIA Adaptive Vertical Sync
  • NVIDIA Surround
  • Microsoft DirectX 12
  • NVIDIA® 3D Vision® Ready
  • NVIDIA SLI® Ready Technology
  • NVIDIA CUDA® technology
  • PCI Express 3.0 support
  • OpenGL 4.4 support
  • OpenCL support
  • NVIDIA SHIELD Ready
  • NVIDIA G-Sync Ready
  • GPU Engine Specs:
  • CUDA Cores 2816
  • Base Clock (MHz) 1203
  • Boost Clock (MHz) 1304
  • Memory Specs:
  • Memory Speed 3505 (7010 ) MHz
  • Standard Memory Config 6144MB
  • Memory Interface Width 384-bit GDDR5
  • Memory Bandwidth (GB/sec) 336.5
  • Feature Support:
  • OpenGL 4.4
  • Bus Support PCI-E 3.0
  • Certified for Windows 8 Yes
  • Supported Technologies DirectX 12
  • Virtual Reality Ready Yes
  • SLI Options 4-WAY
  • Display Support:
  • Multi Monitor
  • Maximum Digital Resolution 5120x3200
  • Maximum VGA Resolution 2048x1536
  • HDCP Yes
  • HDMI Yes
  • Standard Display Connectors DVI-I, HDMI 2.0, 3 x DP 1.2
  • Audio Input for HDMI Internal
  • Power Specs:
  • Maximum Graphics Card Power (W) 250W
  • Minimum System Power Requirement (W) 600W
  • Supplementary Power Connectors Two 8-pin
  • Model:
  • Product Code 98IRH5DHH3WT
  • EAN Code 4895147120270
  • Dimensions:
  • Dimensions(with Bracket): 281*140.1*41.5 mm
  • Dimensions(without Bracket): 266.7*127*38.6 mm
  1. PCI Express-compliant motherboard with one dual-width x 16 graphics slot
  2. 2 x 8-pin PCI Express supplementary power connectors
  3. Minimum 600W or greater system power supply
  4. 300MB of available hard-disk space
  5. 2GB system memory (4GB or higher recommended)
  6. Microsoft Windows 10, Windows 8 & 8.1, Windows 7, Windows Vista (32 or 64-bit)
  7. CD-ROM/DVD-ROM drive or Internet connection
  8. Windows XP no longer supported
